5T 0.5m Cast iron Material Feeding Rack Metal Coil Uncoiler & Recoiler Machine

5T 0.5M Uncoiler. Do not exceed maximum load capacity (5T) or maximum material width (0.5m) during operation. Suitable for steel strip coils, aluminum coils, and other heavy material handling applications.

3647.80$

Product Stock Quantity
- +
Add To Cart
5T 0.5M Uncoiler Metal Material Winding and Unwinding Heavy Material Support - Technical Specifications

5T 0.5M Uncoiler
Metal Material Winding and Unwinding Heavy Material Support

HayWHNKN®
5T 0.5M Uncoiler Metal Material Support
Product Overview

The 5T 0.5M metal material winding and unwinding support is a vital auxiliary tool for metal sheet production lines, featuring manual tension adjustment, integrated coiling/uncoiling functionality, stable load support, and broad application compatibility.

This heavy-duty material support system operates seamlessly with punching machines and other processing equipment. Suitable for steel strip coils, aluminum coils, and other heavy material handling applications. Widely utilized in automotive manufacturing, energy equipment production, shipbuilding, aerospace, metal packaging, and industrial fabrication facilities.

Technical Specifications
Construction Material Cast Iron
Maximum Load Capacity 5 Tons (11,023.1 lbs)
Material Loading Width 0.5 meters (19.7 inches)
Product Dimensions 116 × 144 × 141 cm (45.7 × 56.7 × 55.5 inches)
Net Weight 289 kg (637.1 lbs)
Uncoiler Technical Specifications View
Operation & Safety Guidelines
Do not exceed maximum load capacity (5T) or maximum material width (0.5m) during operation.
Position support on level, stable ground surface to ensure proper load distribution and prevent instability.
Features & Advantages
Support Rods and Tensioning System

Support & Tensioning System

  • Four Support Rods: Flexible parallel connection to center shaft
  • Controlled Expansion: Precise material coil support and release
  • Optimized Tensioning: Excellent tension control and load distribution
  • Structural Integrity: High-strength construction for maximum reliability
Lengthened Plates and Support Enhancement

Enhanced Support System

  • Cast Iron Extension Plates: Effectively enlarge side plate support range
  • Large Coil Compatibility: Enhanced support for oversized material coils
  • Alignment Protection: Prevents material deviation during winding/unwinding
  • Optimized Load Distribution: Even pressure distribution across support surface
Main Shaft and Drive Compatibility

Drive & Power Transmission

  • Main Shaft Compatibility: Matches with driving devices or external equipment
  • Material Rotation Drive: Direct drive capability for material roll rotation
  • High Adaptability: Compatible with various industrial drive systems
  • Extended Service Life: Reduced maintenance requirements and operational costs
Support Rods Detailed View

Support Rod System

Four parallel support rods with flexible center shaft connection. Controlled expansion mechanism for precise material coil support and tension adjustment. High-strength construction ensures reliable performance under 5-ton load conditions.

Lengthened Plates Detail

Enhanced Support Plates

Cast iron extension plates significantly expand side plate support area. Provides superior support for large material coils and prevents operational deviation. Ensures stable material handling during winding and unwinding processes.

Main Shaft Assembly

Main Shaft Assembly

Designed for compatibility with external drive systems and equipment. Enables direct material roll rotation control with high adaptability. Extended service life with minimal maintenance requirements for continuous operation.

Support Body Structure

Stable Support Structure

Engineered support body provides exceptional structural strength and stability. Delivers consistent supporting force across 0.5m material width. Effective fall prevention and material protection during winding/unwinding operations.

Product Display

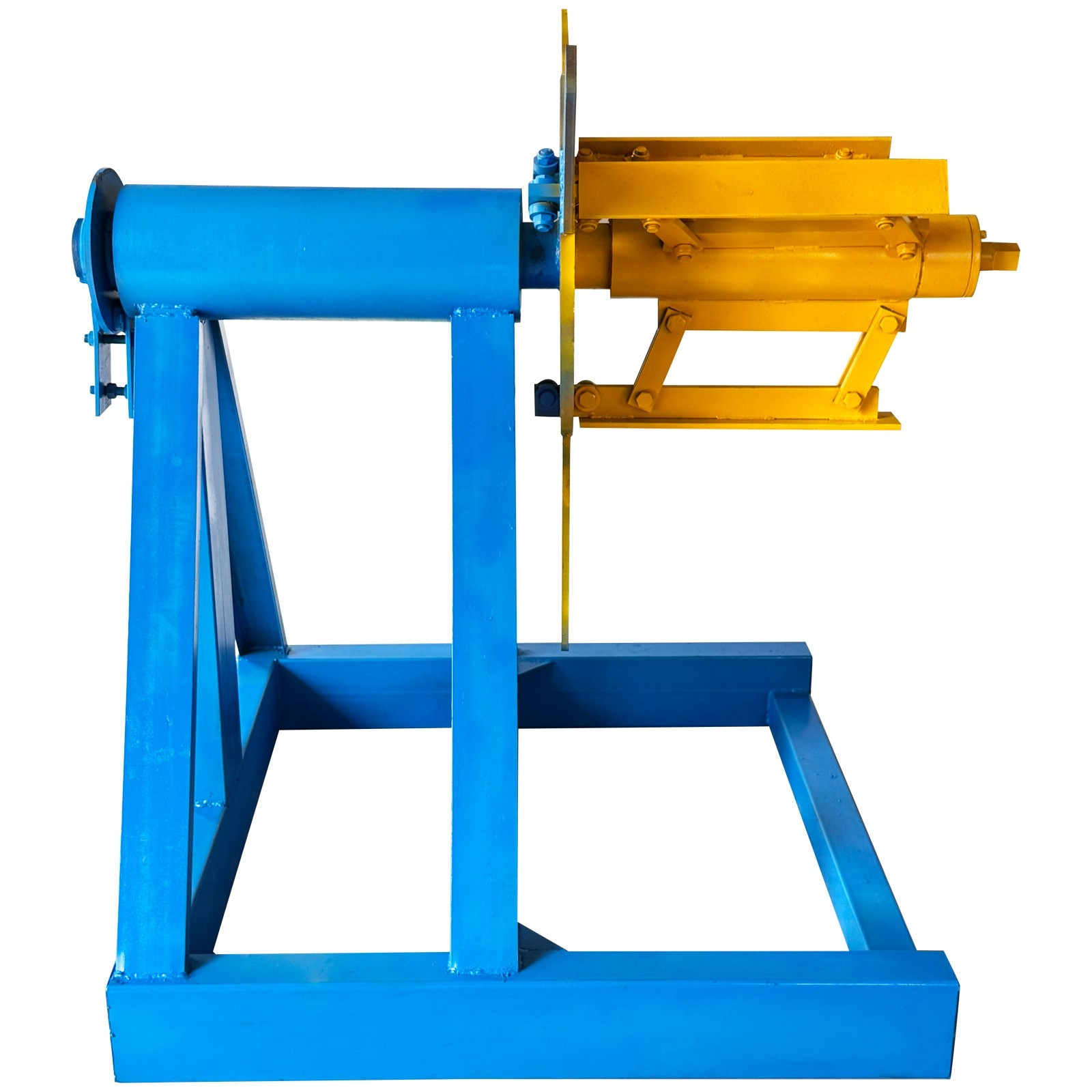

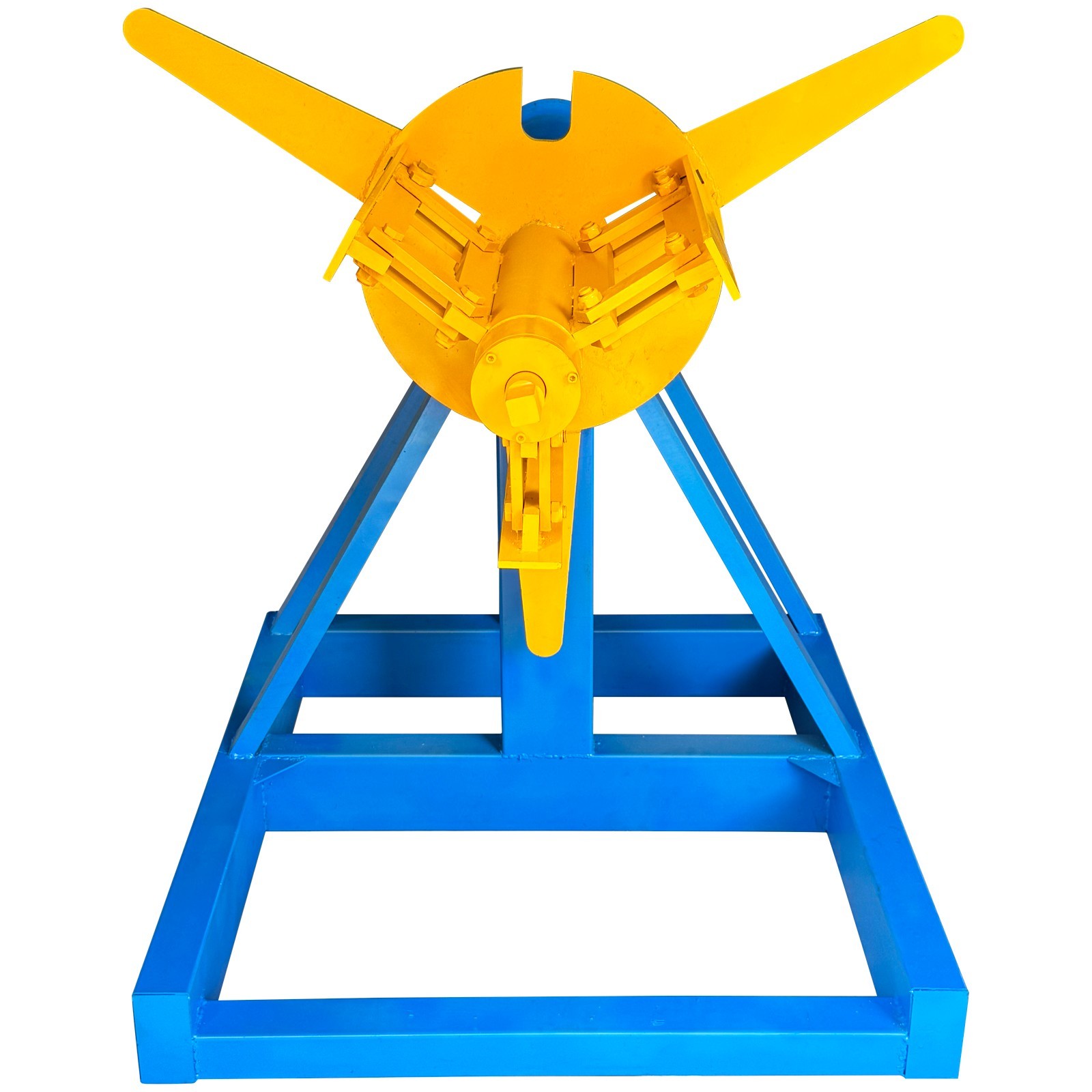

Uncoiler Front View Uncoiler Side View Uncoiler in Operation Uncoiler Detail View
Item Number (057128): 1 × 5T 0.5M Metal Material Winding and Unwinding Heavy Material Support
