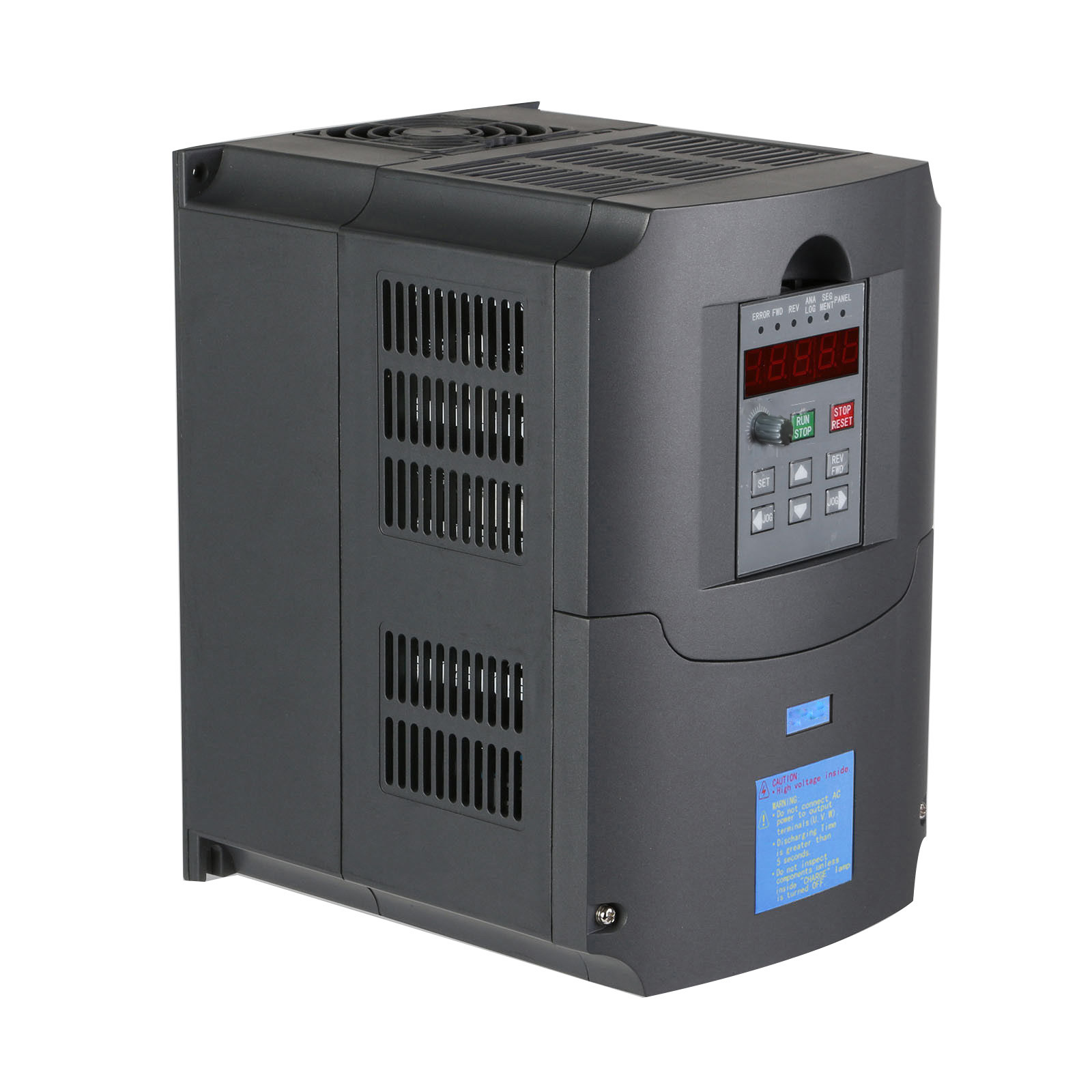

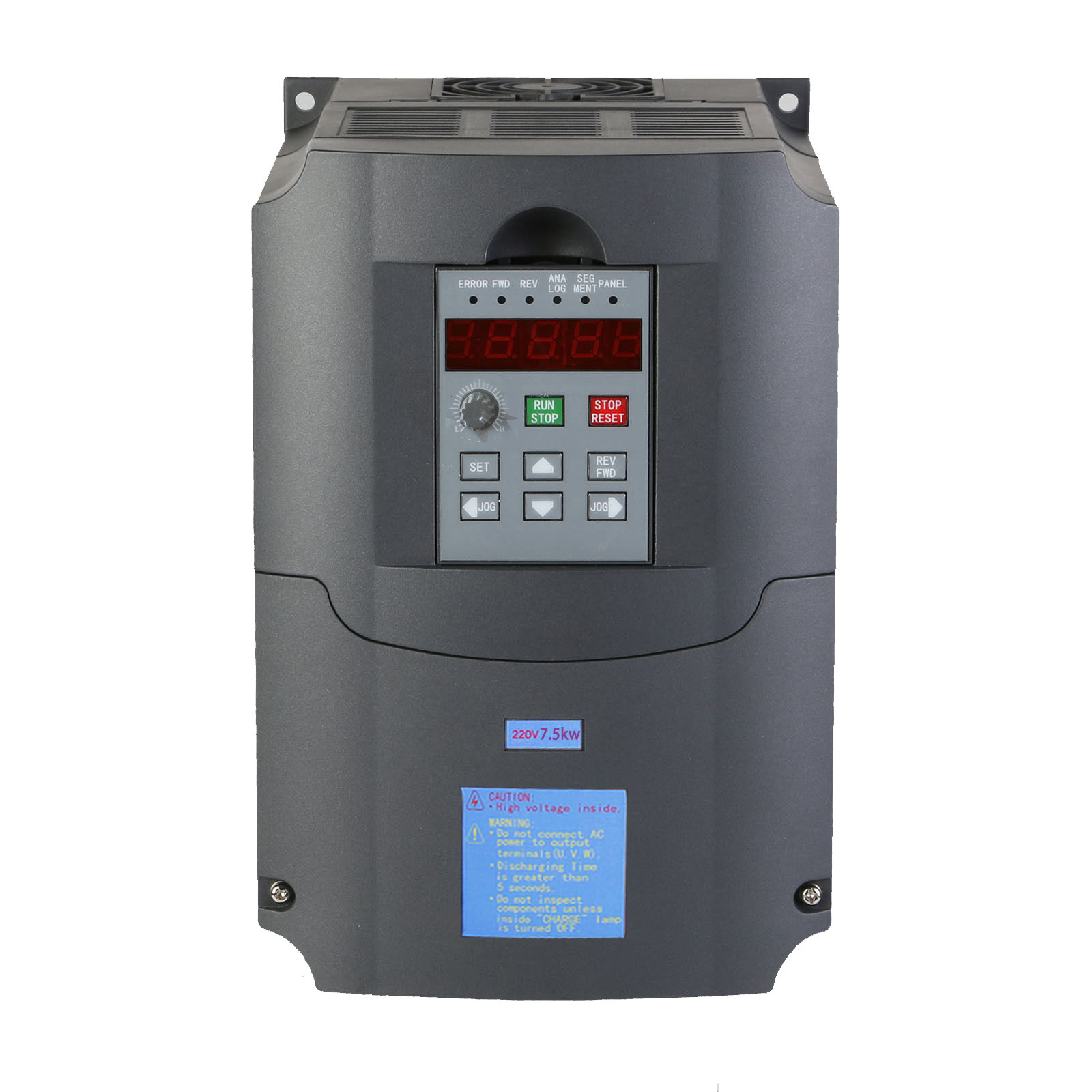

220V 7.5KW VFD SINGLE TO  THREE PHASE

Great for Compressor, CNC router, Spindle motor, Grinder

This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter. The input for this VFD is 1 phase . You can control the different speed as you like when yo use this VFD. Many customer bought this VFD from us to use for: Lathes, Mills, Car Hoists, Pumps & Conveyors, etc and then performance excellently. This item use Sine wave PWN(SPWM ) for the control system and performance excellently.

 About the item:

 【Product Parameters】Power: 7.5KW, input voltage: AC 220V(180-250V),output voltage 220V;input current 35A, output current 50A; input frequency 40-60HZ, output frequency: 0-400HZ; input phase: single-phase or three-phase, output phase: three-phase.
【Multiplex terminal】Unlike other inexpensive VFDS, this VFD has two sets of terminal functions,Rich of digital and analogy control terminals for versitile control,optional MODBUS (RS485) extension,diversified parameter setting
【Safety performance】Take advantage of various protection ways such as Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under-voltage protection, overheat protection, overload protection and etc.

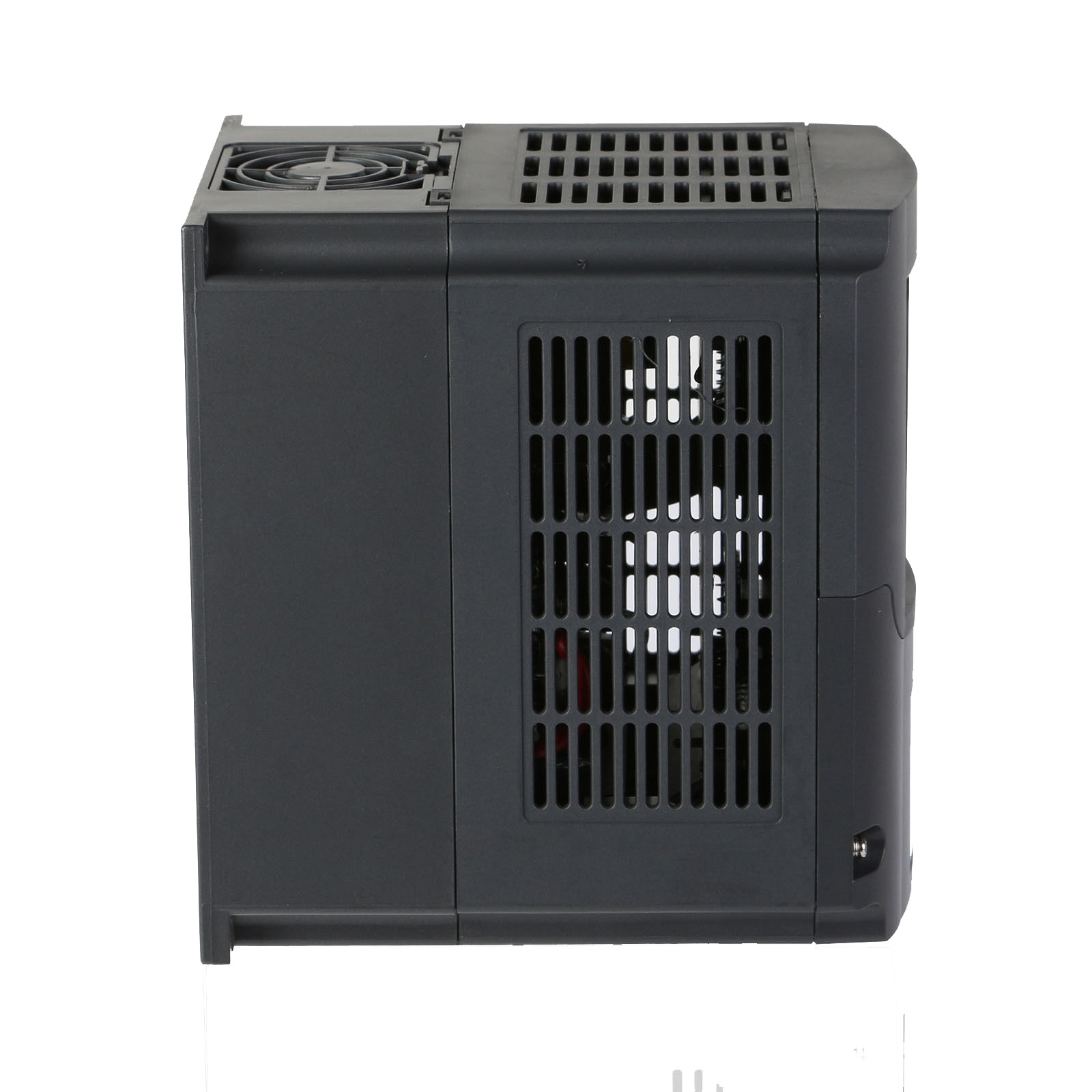

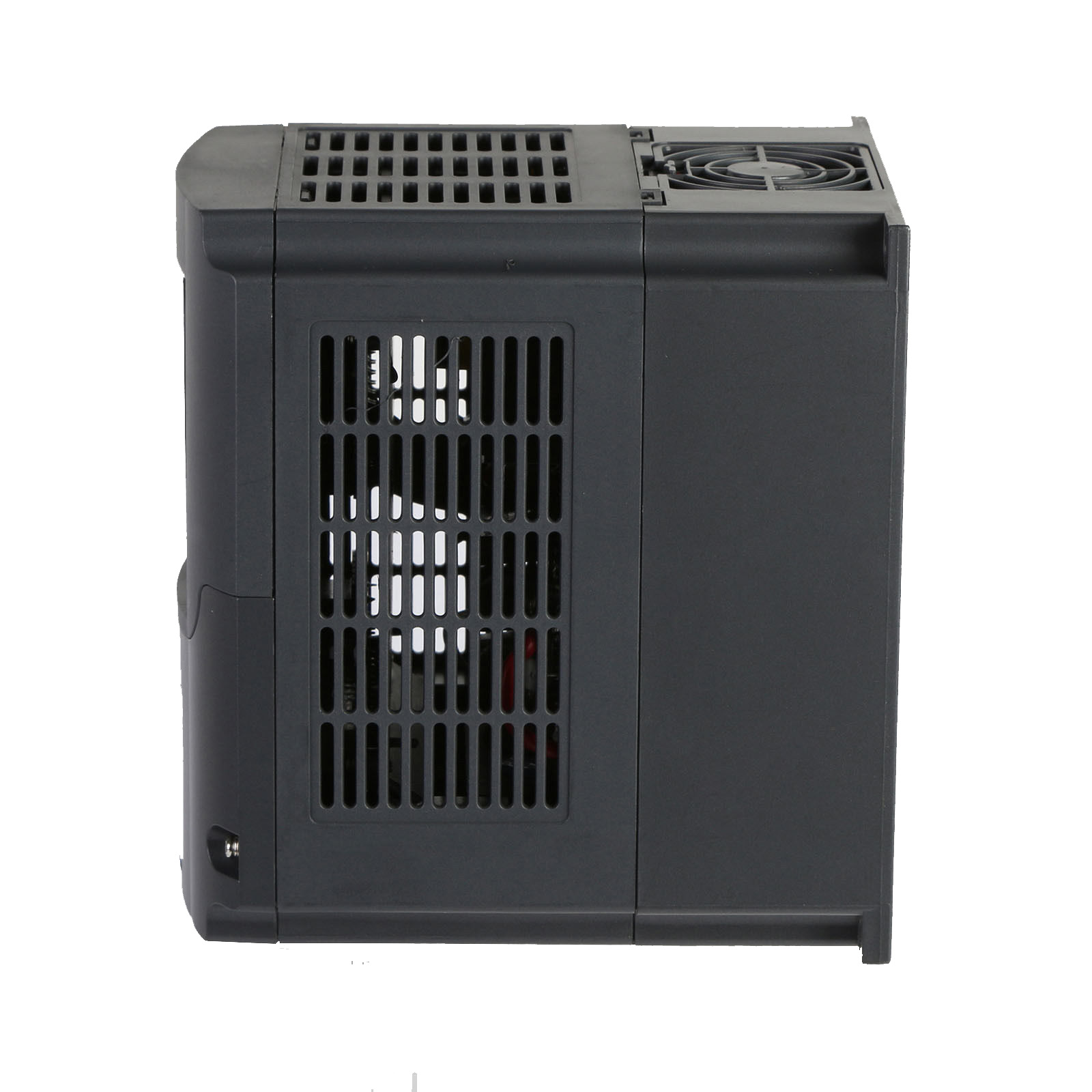

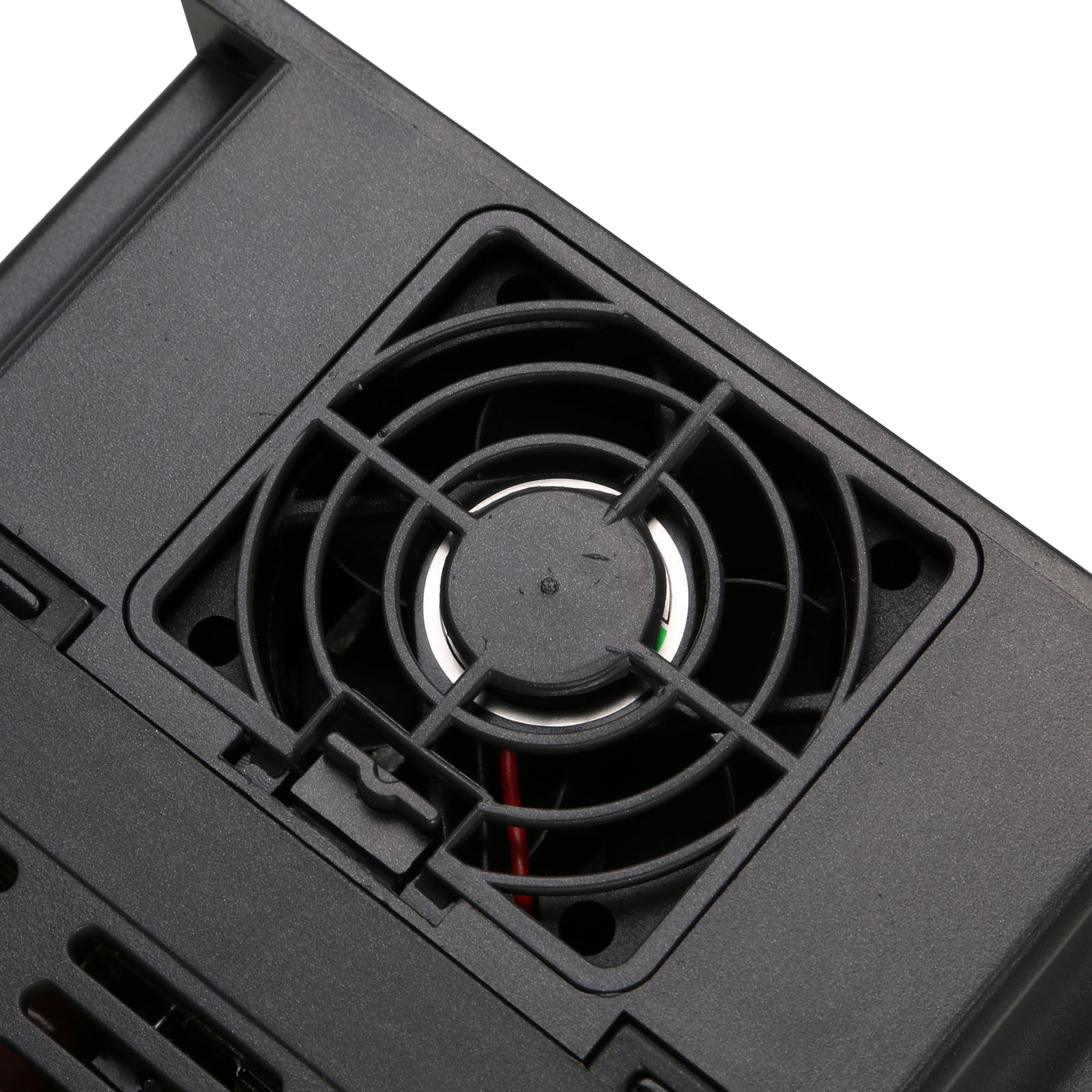

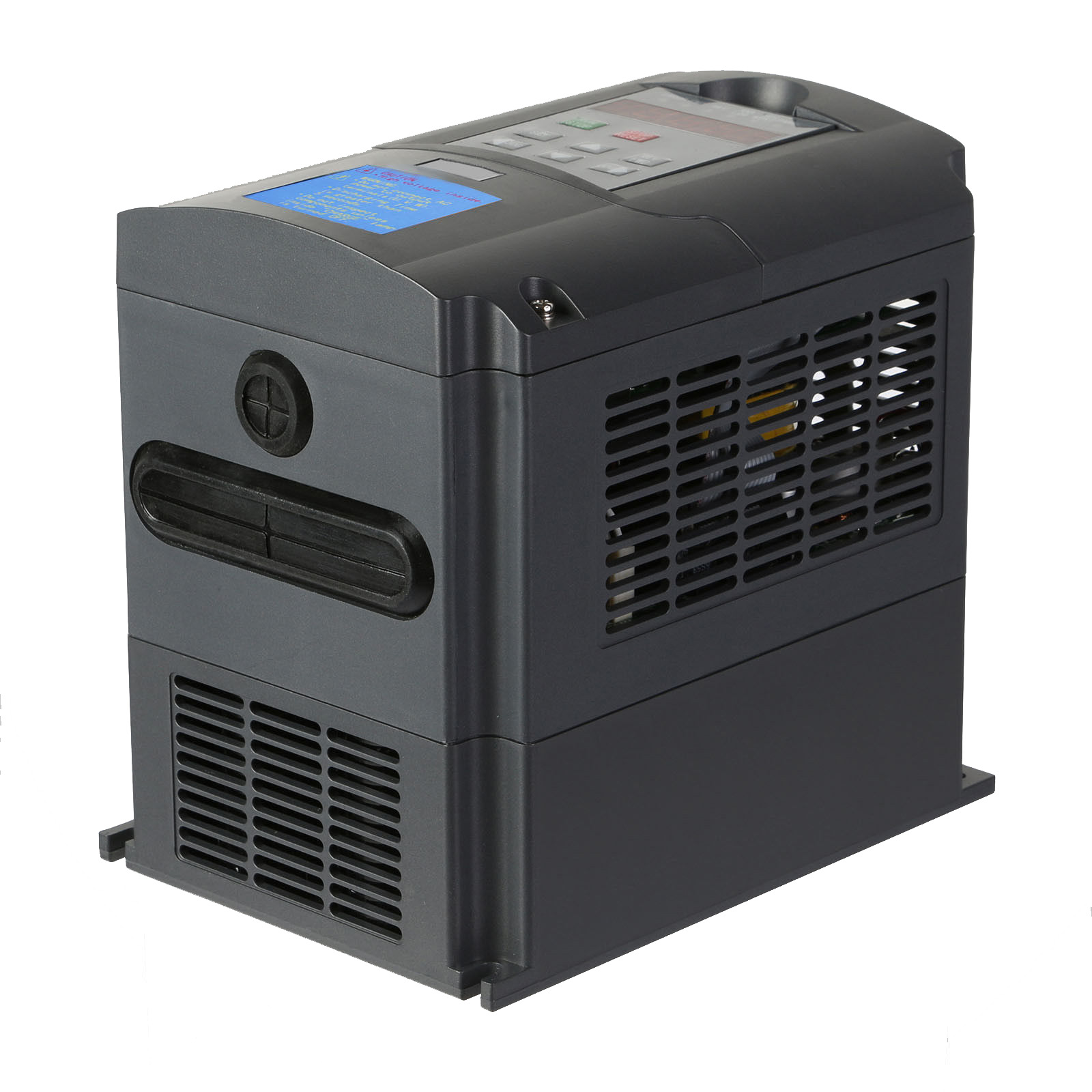

【Good Noise Control】The product has the advantages of low noise and low electromagnetic interference, which are achieved by the excellent PMW control technology and component compatibility design. There is enough space for cooling between each component, and the product casing is designed with multiple holes, the above features can make this VFD have a longer service life.
【Various Protection】The product has overload protection, fuse protection, overvoltage protection (DC voltage > 400), or low voltage protection (DC voltage < 200), restart protection, stall protection, short circuit protection, and overheat protection. excellent PMW control technology and component compatibility design. There is enough space for cooling between each component, and the product casing is designed with multiple holes, the above features can make this VFD have a longer service life.
【Warranty】: Lifetime warranty .If there is an error code in the product and you do not know how to operate, please contact the seller.

• NOTE: This drive only works with 3-phase asynchronous motors. Please make sure your motor is a 3-phase asynchronous motor before purchasing. To protect the VFD, be sure to press the red button "Stop" and turn off the power when you stop using it.When the VFD is working, the inside of the heat sink may reach about 176℉ (80℃), please pay attention to the protection measures!
  The motor ( or other loads ) and the VFD can only be connected by wire without anything between （eg. No switch can be installed between them).If you want to use the switch to control the load, please refer to the following method to connect the terminals. The two ends of the switch are connected to FWD and GND, turn on the switch, the motor is turning positive, turn off the switch, the motor stops working.The two ends of the switch are connected to REV and GND, turn on the switch, the motor reverses, turn off the switch the motor stops working.Select the function you want to achieve to connect the switch.
•

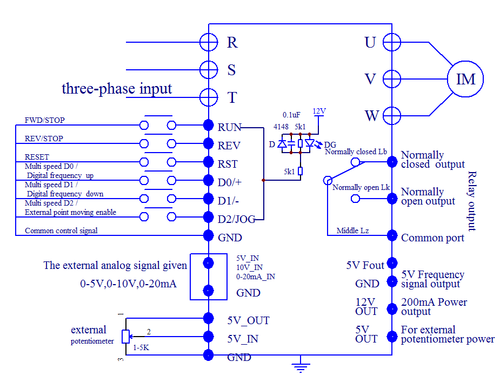

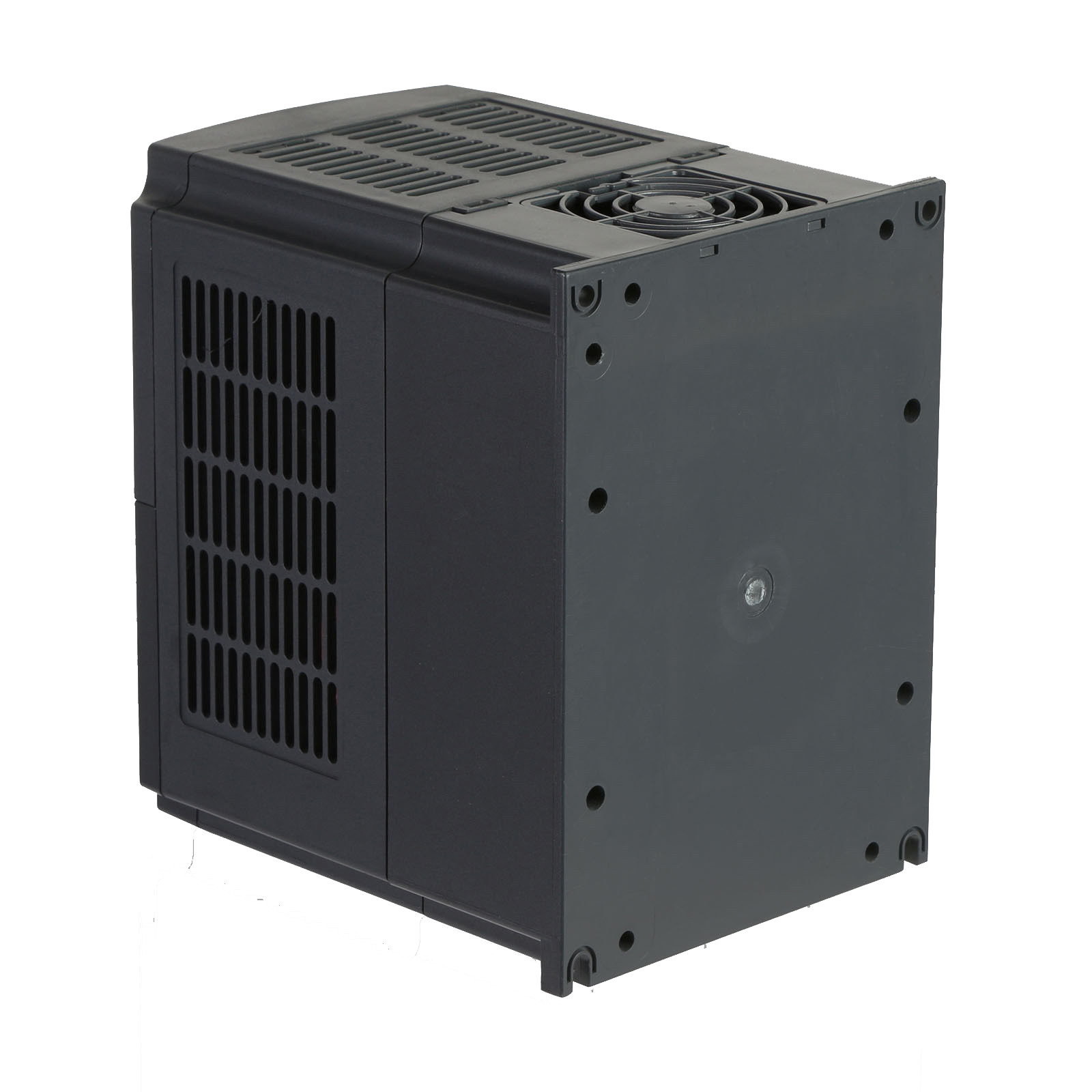

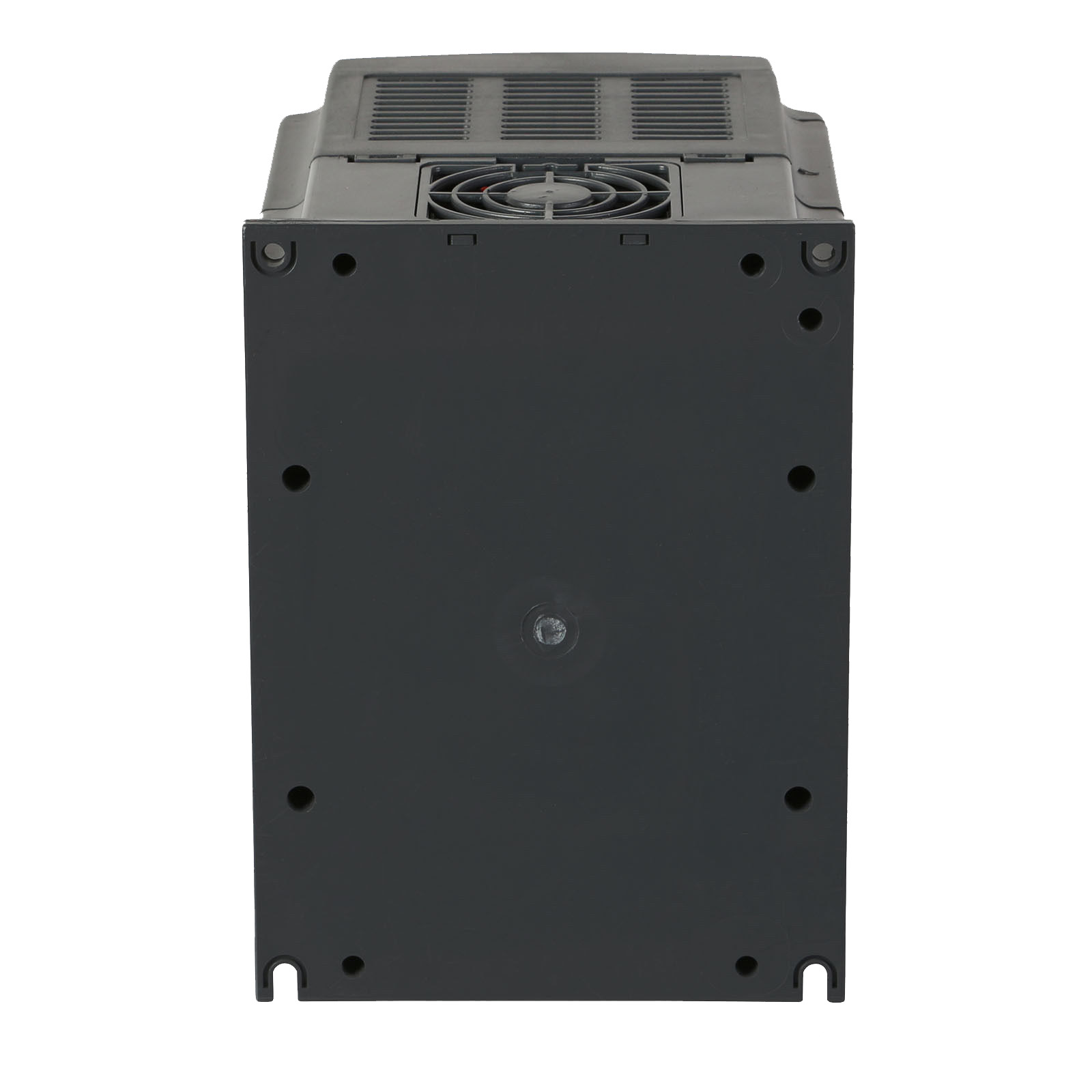

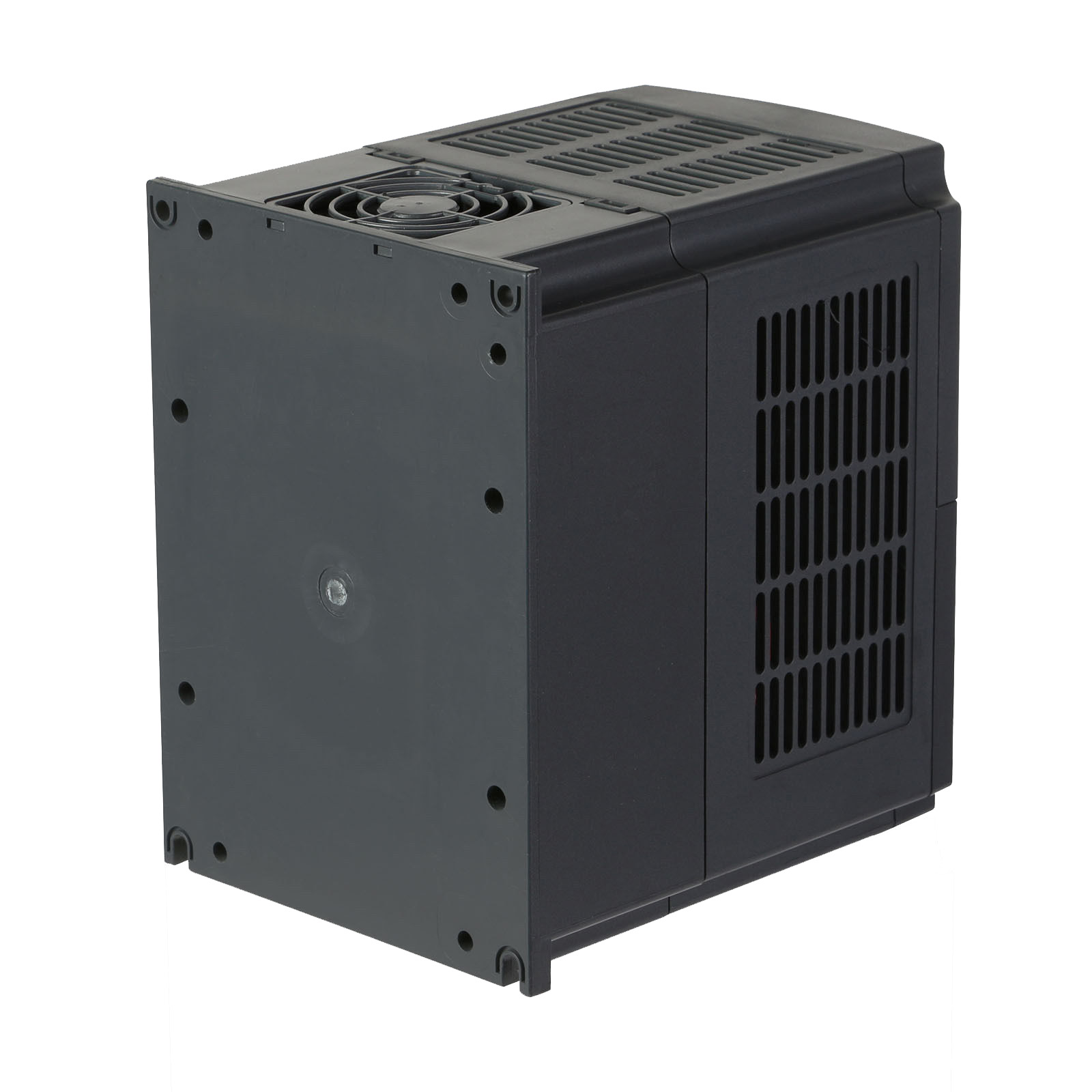

How To Install This VFD

Symbol:Function Description

R.S.T:Input terminal of AC line power.（220V class for single phase, single phase connected to any two phases）

U.V.W:Output terminal of the inverter

P+.PR:Connector for braking resistor.

E:Ground terminal: the third method of grounding for 220V.

Frequency Control

Range:0.1~2500.0Hz

Accuracy:Digital: 0.1%（-10~40℃）; Analog: 0.1% （25±10℃）

Setting Resolution:Digital: 0.1Hz; Analog: 1‰ of max. Operating frequency

Output Resolution:0.1Hz

Operator Setting Method:Press directly ←∧∨ to set.

Analog Setting Method:External Voltage 0-5V，0-10V，4-20mA，0-20mA.

Other Functions:Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set.

General Control

Ramp Control:Selectable 4-speed steps ramp-up and -down time (0.1-6500s).

Torque Control:Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz.

Multi-Inputs:6 multi-function input terminals for 8–speed steps control, program operation, switching of 4-speed Ramp, UP/DOWN function, counter, external emergency stop and other functions.

Multi-Outputs:5 multi-output for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings.

Other Functions:Auto Voltage Regulation（AVR）, Decelerating Stop or Coasting Stop, DC Braking, Auto Reset and Restart, Frequency Track, PLC Program Control, Traverse Control, Drawing Control、Auto Energy Saving, Carrier Adjustable (Up to 20KHz), etc.

Protection Functions

Overload Protection:Electronic relay protection motor drive.Drive（for constant torque 150%/1 min. for the kinds of fan 120%/1min.）

Fuse Protection:When the fuse breaks , the motor will stop.

Over-voltage 220V class：DC Voltage ＞400V.

Under-voltage 220V class：DC Voltage ＜200V.

Restart After Instant Stop:Restart with Frequency Track after Instant Stop

Stall Protection:Stall protection in ramp operation

Output Short Circuit:Electrical circuit protection

Other Functions:Fin over-heat protection, restriction of reverse running, direct start after power on, fault reset, parameter lock PID, one-drive-more, etc.
