Unstoppable Power: Experience the incredible driving force of our electric mag drill. With its 1450W copper motor, it generates exceptional power to drill through the toughest materials at 0-800 RPM.
259.90$
Product Stock Quantity
-
+
Add To Cart
The Pinnacle of Magnetic Power
This magnetic drill press securely adheres to steel or iron surfaces, delivering precise, burr-free holes. With 6 drill bits, it handles diverse drilling tasks. Made of premium alloy, it's ideal for home assembly, industrial use, and steelwork.
Q: What is the applied voltage and size of the product?
A: The product size is 11x7.3x14.2in/280x185x360mm, applicable voltage/frequency is 230V 50Hz for EUR/AUS or 120V 60Hz for US.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?

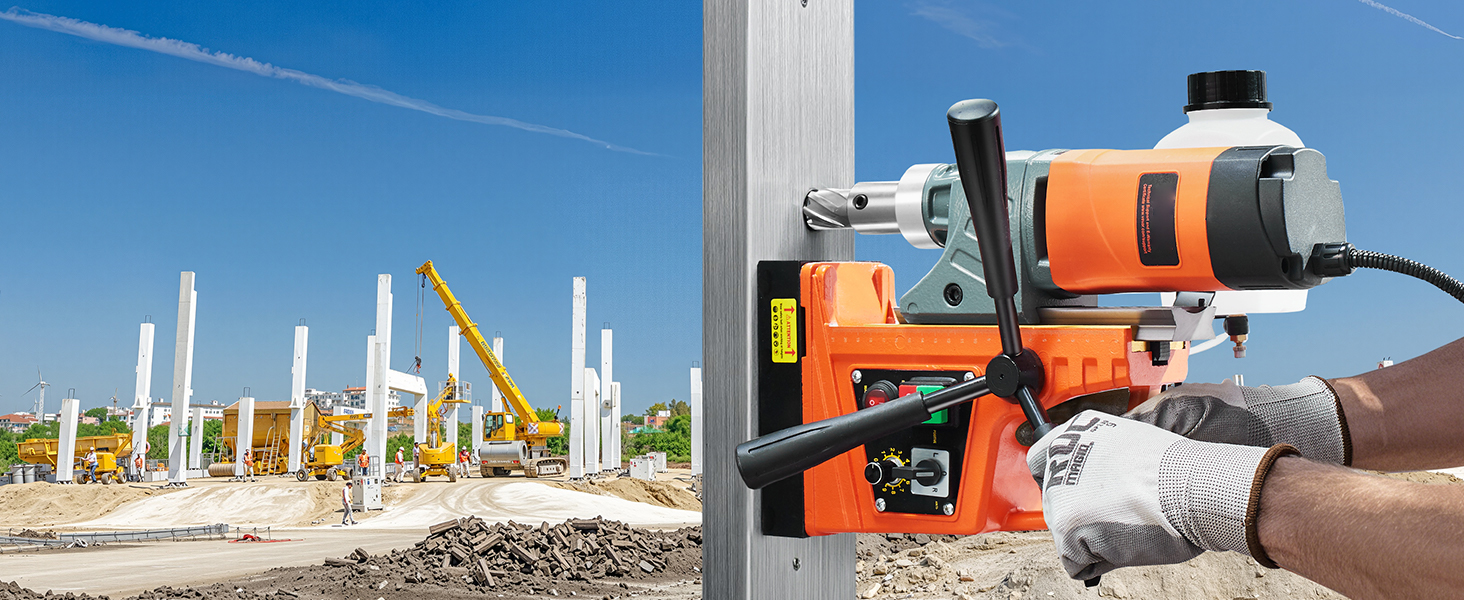

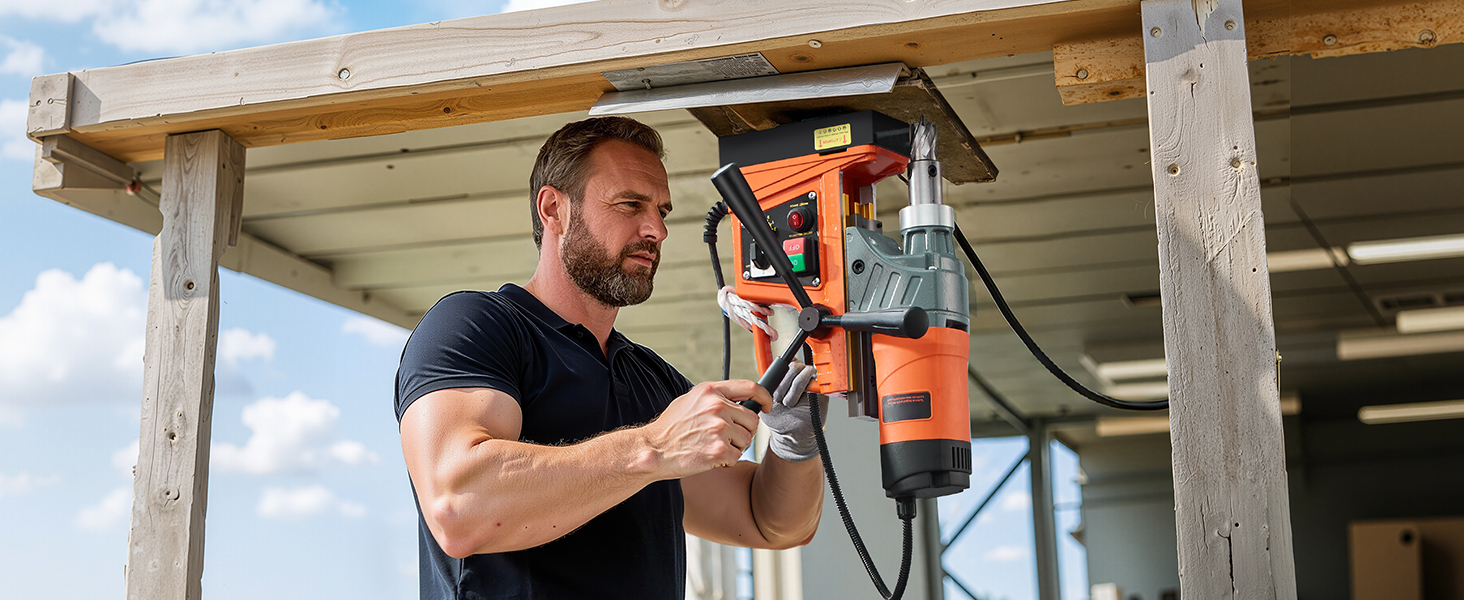

A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: Does the package come with a drill chuck?
A: Yes, the product has a twist drill chuck with a 100mm boring depth.
Q: Can this product run in reverse?

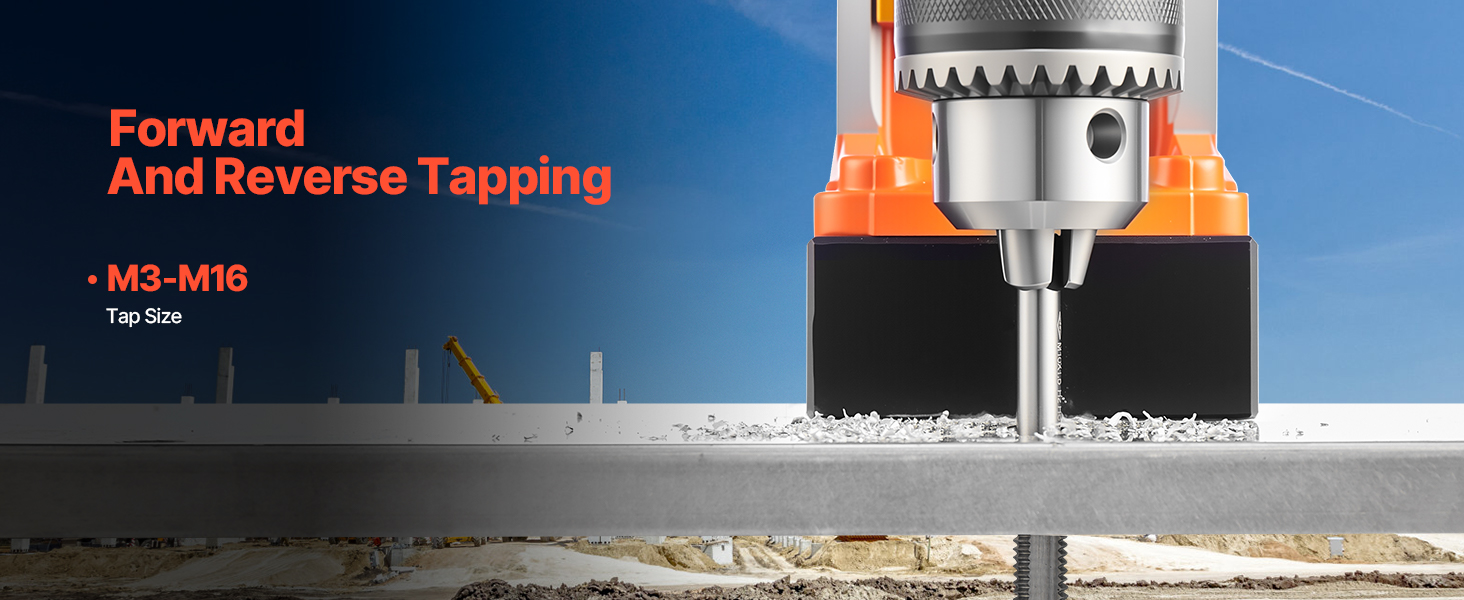

A: Our products can perform positive and negative tapping to meet your diversified drilling needs.
A: The product size is 11x7.3x14.2in/280x185x360mm, applicable voltage/frequency is 230V 50Hz for EUR/AUS or 120V 60Hz for US.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?
A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: Does the package come with a drill chuck?
A: Yes, the product has a twist drill chuck with a 100mm boring depth.
Q: Can this product run in reverse?
A: Our products can perform positive and negative tapping to meet your diversified drilling needs.
Features & Details

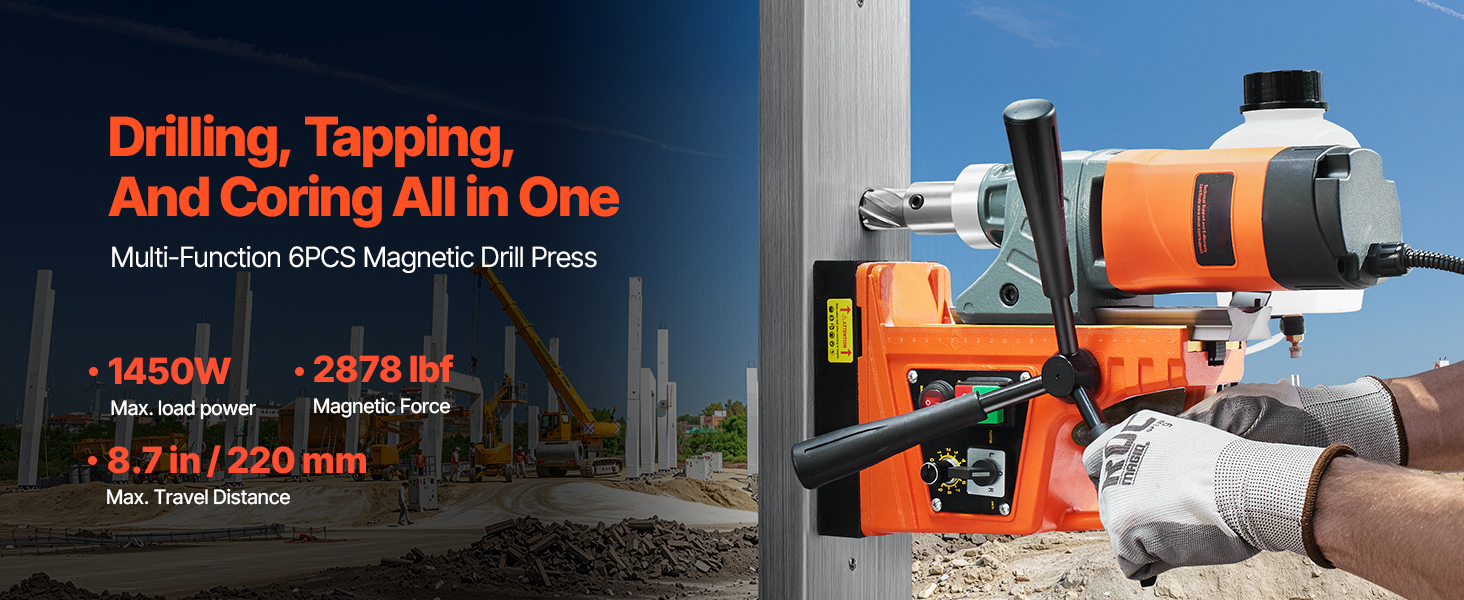

- Unstoppable Power: Experience the incredible driving force of our electric mag drill. With its 1450W copper motor, it generates exceptional power to drill through the toughest materials at 0-800 RPM. Max. Boring Diameter (Coring Drill): Φ2 in / Φ50 mm; Max. Coring Depth: 2 in / 50 mm.
- Robust Force: The electromagnetic thickened base creates a solid foundation, generating 2878 lbf / 12800N of force. This ensures stability at any angle during the drilling process. The 10-speed gears allow for accurate and efficient operation based on different drilling diameters.

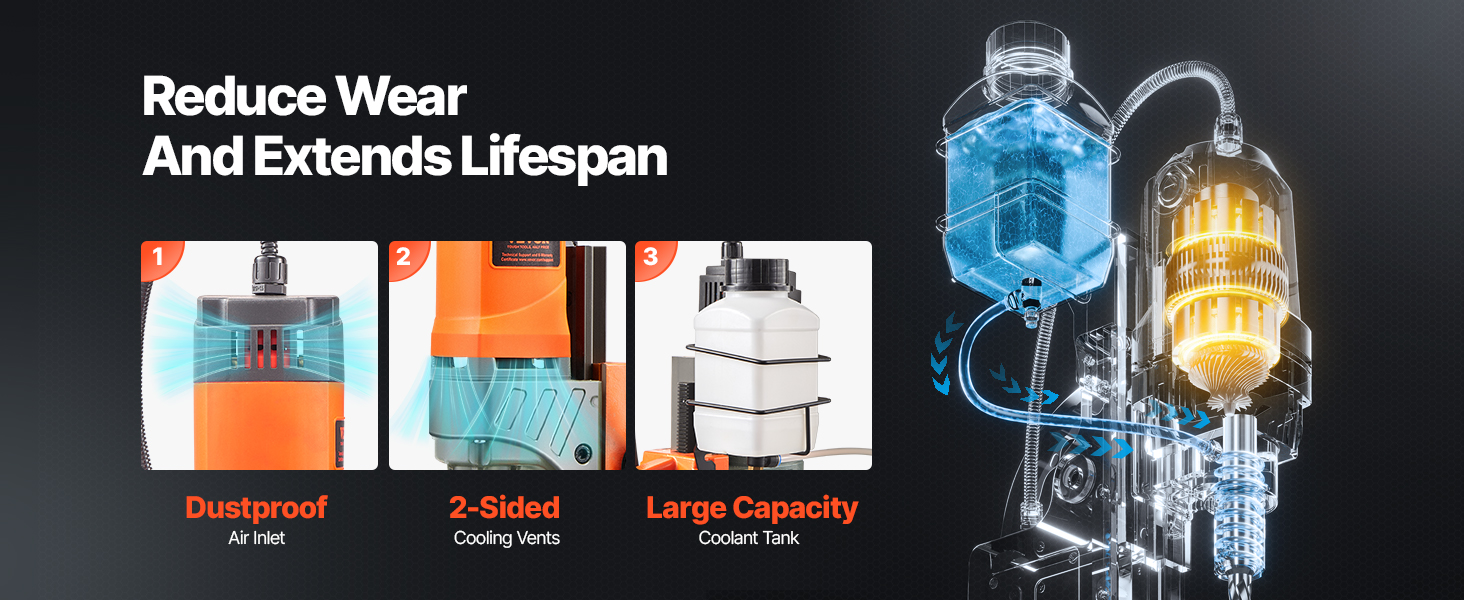

- Safety and Durability: Your safety is our priority. Our mag drill features combined overload protection to prevent accidents. The cooling system ensures fast heat dissipation, protecting operators from high temperatures. The titanium magnesium alloy guide rail enhances durability and resistance to corrosion and wear, extending the device's service life.

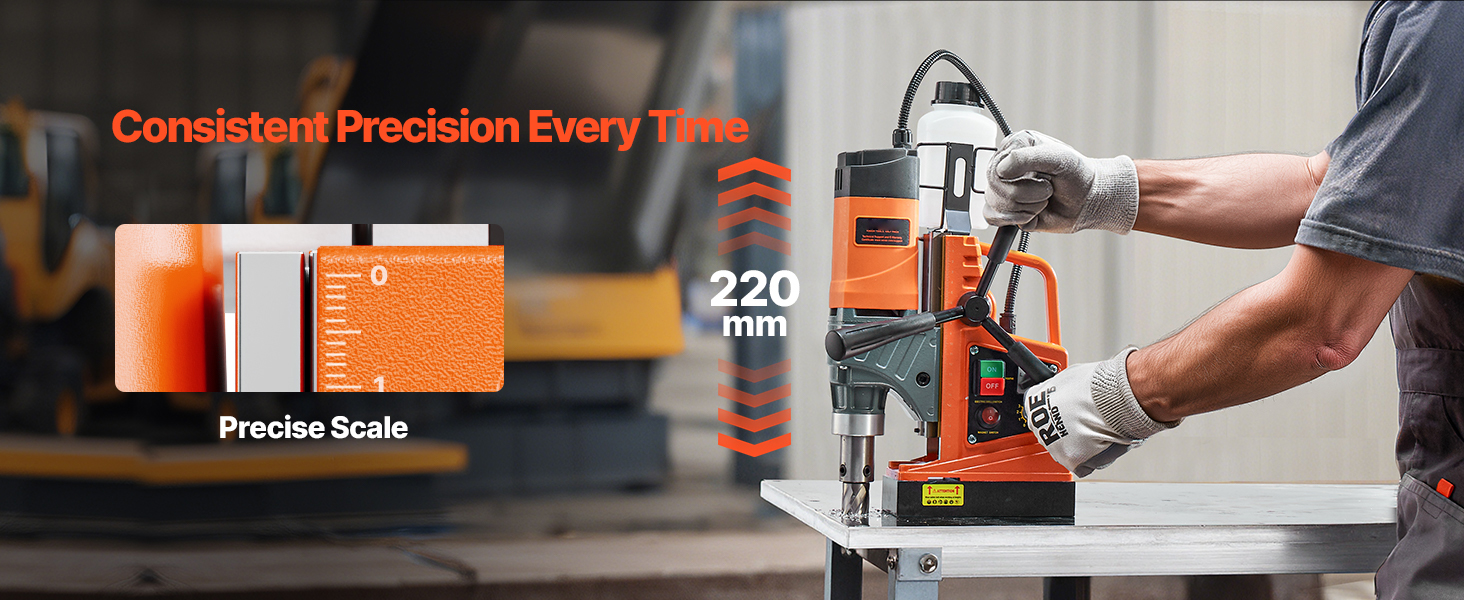

- User-friendly Design: We've added a scale to the machine's frame, enabling users to measure the distance between the drill bit and the material in millimeters. This ensures precise and neat holes, even for beginners. The ergonomically designed handle and 3 extended cranks provide a comfortable grip, making handling and moving effortless.
- Versatile Applications: Our magnetic drill is essential for various tasks, including home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and more. Note: Suitable for steel plate thickness of ≥ 0.39 in / 10 mm. Not recommended for stainless steel or cast iron. For inverted and horizontal drilling, please use a safety rope.
SHIPPING ABOUT US PAYMENT RETURNS CONTACT WARRANTY
Welcome to our eBay store. As a leading and emerging company in manufacturer and exporting business, we are specialized in Business and Industrial Products, Sporting Goods, Pet Products, Home and Garden products for more than 10 years. We believe that it is our vision and mission to provide innovative products with best service and competitive price to satisfy you. Our goal is to make sure that you can find exactly what you are looking for and make it easy for you to place your orders.
We accept PayPal payment,PayPal Credit,Credit card or debit card and so on.Payment should be completed within 4 (Four) days of auction closing. Or unpaid dispute will be filed for closing auction.We will leave a positive feedback immediately after payment is received. We appreciate a positive feedback as much as you do. If for some reason there is any issue with the purchase, please contact us prior to leaving feedback, we will be glad to work together and provide a satisfying solution.
Please be aware that PO Box cannot receive items,please DO NOT fill in the PO Box address.
- DELIVERY DAYS: 3-7 BUSINESS DAYS
- 3 BUSINESS DAYS SHIPPING OUT
- SHIP FROM CA & TX & NJ & GA & NC &OR WAREHOUSE
California Warehouse: City of Industry, CA
Texas Warehouse: Houston, TX
New Jersey Warehouse: Perth Amboy, NJ
New York State Warehouse: Perth Amboy, NJ
Georgia Warehouse: Austell,GA
North Carolina Warehouse: Grove NC
Oregon Warehouse: AIRPORT WAY Portland,OR
- All of our items are backed with a 30-day return policy. We ensure all our items are new and in excellent condition prior to shipping. In case you receive the item that is not to the standards above, please contact us via e-Bay messages. All returns must be in new original condition as received and should be shipped with delivery confirmation
- Please note that all returns must be pre-approved by us. Unauthorized returns will not be accepted. If you need to return, please check twice to confirm the item not work and contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation.
- We ONLY accept returns with original package. Please make sure that item has NO man-made sabotage. Used items will not be accepted for return.
- Email Customer Support:
- 9:00am-2:00am PST Sunday-Friday
- All emails will be responded to within 12-24 hours
- This item comes with 12 months Warranty from the date of customers purchased it. Special circumstances will be listed clearly in the listing.
- If your item has been damaged in transit or become faulty in warranty period, please email us with pictures or video to show the problem.
- Please do check everything carefully after you received the parcel, any the damage except DOA (Dead-On-Arrival) would not be covered if it's your fault.
- Replacement products are provided with the same warranty as the returned products.
The Pinnacle of Magnetic Power
This magnetic drill press securely adheres to steel or iron surfaces, delivering precise, burr-free holes. With 6 drill bits, it handles diverse drilling tasks. Made of premium alloy, it's ideal for home assembly, industrial use, and steelwork.
Q: What is the applied voltage and size of the product?
A: The product size is 11x7.3x14.2in/280x185x360mm, applicable voltage/frequency is 230V 50Hz for EUR/AUS or 120V 60Hz for US.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?
A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: Does the package come with a drill chuck?
A: Yes, the product has a twist drill chuck with a 100mm boring depth.
Q: Can this product run in reverse?
A: Our products can perform positive and negative tapping to meet your diversified drilling needs.
A: The product size is 11x7.3x14.2in/280x185x360mm, applicable voltage/frequency is 230V 50Hz for EUR/AUS or 120V 60Hz for US.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?
A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: Does the package come with a drill chuck?
A: Yes, the product has a twist drill chuck with a 100mm boring depth.
Q: Can this product run in reverse?
A: Our products can perform positive and negative tapping to meet your diversified drilling needs.
Features & Details
- Unstoppable Power: Experience the incredible driving force of our electric mag drill. With its 1450W copper motor, it generates exceptional power to drill through the toughest materials at 0-800 RPM. Max. Boring Diameter (Coring Drill): Φ2 in / Φ50 mm; Max. Coring Depth: 2 in / 50 mm.
- Robust Force: The electromagnetic thickened base creates a solid foundation, generating 2878 lbf / 12800N of force. This ensures stability at any angle during the drilling process. The 10-speed gears allow for accurate and efficient operation based on different drilling diameters.
- Safety and Durability: Your safety is our priority. Our mag drill features combined overload protection to prevent accidents. The cooling system ensures fast heat dissipation, protecting operators from high temperatures. The titanium magnesium alloy guide rail enhances durability and resistance to corrosion and wear, extending the device's service life.
- User-friendly Design: We've added a scale to the machine's frame, enabling users to measure the distance between the drill bit and the material in millimeters. This ensures precise and neat holes, even for beginners. The ergonomically designed handle and 3 extended cranks provide a comfortable grip, making handling and moving effortless.
- Versatile Applications: Our magnetic drill is essential for various tasks, including home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and more. Note: Suitable for steel plate thickness of ≥ 0.39 in / 10 mm. Not recommended for stainless steel or cast iron. For inverted and horizontal drilling, please use a safety rope.
SHIPPING
Please be aware that PO Box cannot receive items,please DO NOT fill in the PO Box address.
- DELIVERY DAYS: 3-7 BUSINESS DAYS
- 3 BUSINESS DAYS SHIPPING OUT
- SHIP FROM CA & TX & NJ & GA & NC &OR WAREHOUSE
California Warehouse: City of Industry, CA
Texas Warehouse: Houston, TX
New Jersey Warehouse: Perth Amboy, NJ
New York State Warehouse: Perth Amboy, NJ
Georgia Warehouse: Austell,GA
North Carolina Warehouse: Grove NC
Oregon Warehouse: AIRPORT WAY Portland,OR
PAYMENT
- We accept PayPal payment,PayPal Credit,Credit card or debit card and so on.
- Payment should be completed within 4 (Four) days of auction closing. Or unpaid dispute will be filed for closing auction.
- We will leave a positive feedback immediately after payment is received. We appreciate a positive feedback as much as you do. If for some reason there is any issue with the purchase, please contact us prior to leaving feedback, we will be glad to work together and provide a satisfying solution.
RETURNS
- All of our items are backed with a 30-day return policy. We ensure all our items are new and in excellent condition prior to shipping. In case you receive the item that is not to the standards above, please contact us via e-Bay messages. All returns must be in new original condition as received and should be shipped with delivery confirmation
- Please note that all returns must be pre-approved by us. Unauthorized returns will not be accepted. If you need to return, please check twice to confirm the item not work and contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation.
- We ONLY accept returns with original package. Please make sure that item has NO man-made sabotage. Used items will not be accepted for return.
CONTACT
- Email Customer Support:
- 9:00am-2:00am PST Sunday-Friday
- All emails will be responded to within 12-24 hours
WARRANTY
- This item comes with 12 months Warranty from the date of customers purchased it. Special circumstances will be listed clearly in the listing.
- If your item has been damaged in transit or become faulty in warranty period, please email us with pictures or video to show the problem.
- Please do check everything carefully after you received the parcel, any the damage except DOA (Dead-On-Arrival) would not be covered if it's your fault.
- Replacement products are provided with the same warranty as the returned products.

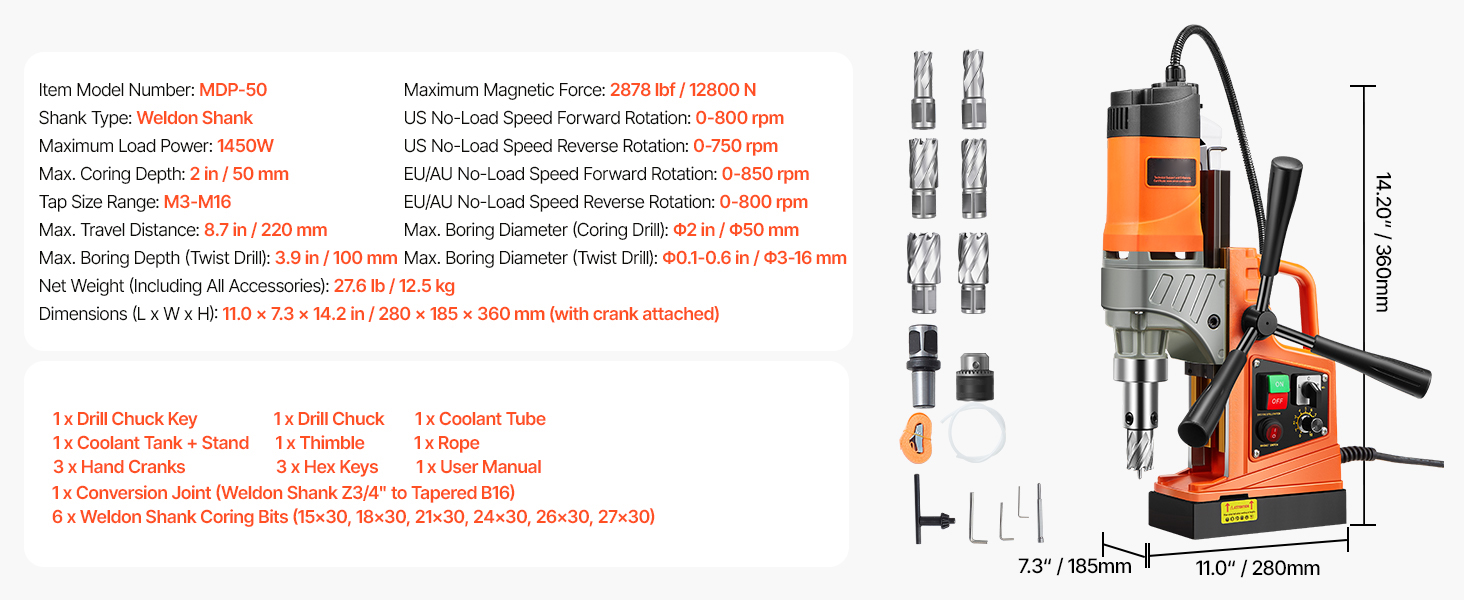

| Brand | Uimoso |
| Machine Type | Magnetic Drill Press |
| Model | CLZTJ6JT50MMO3WWG |
| Net Weight (Including All Accessories) | 27.6 lb / 12.5 kg |
| No-Load Speed Forward Rotation | 0-800 rpm |
| No-Load Speed Reverse Rotation | 0-750 rpm |

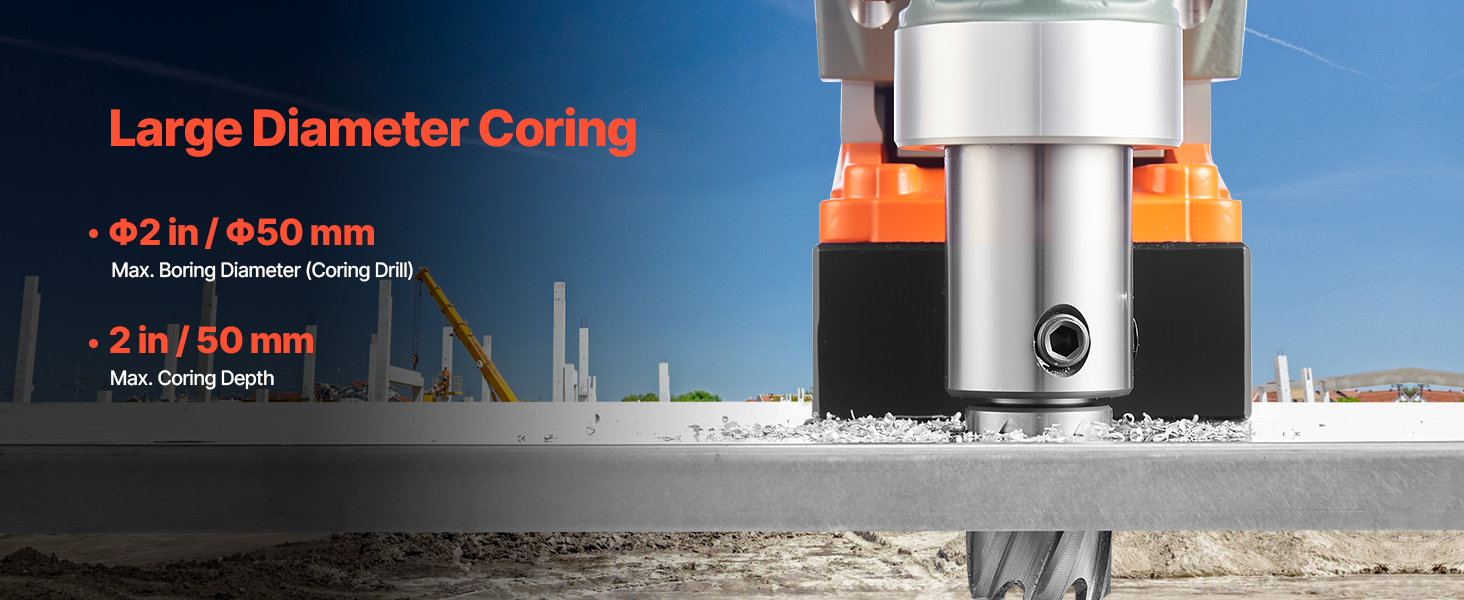

| Max. Boring Diameter (Coring Drill) | Φ2 in / Φ50 mm |

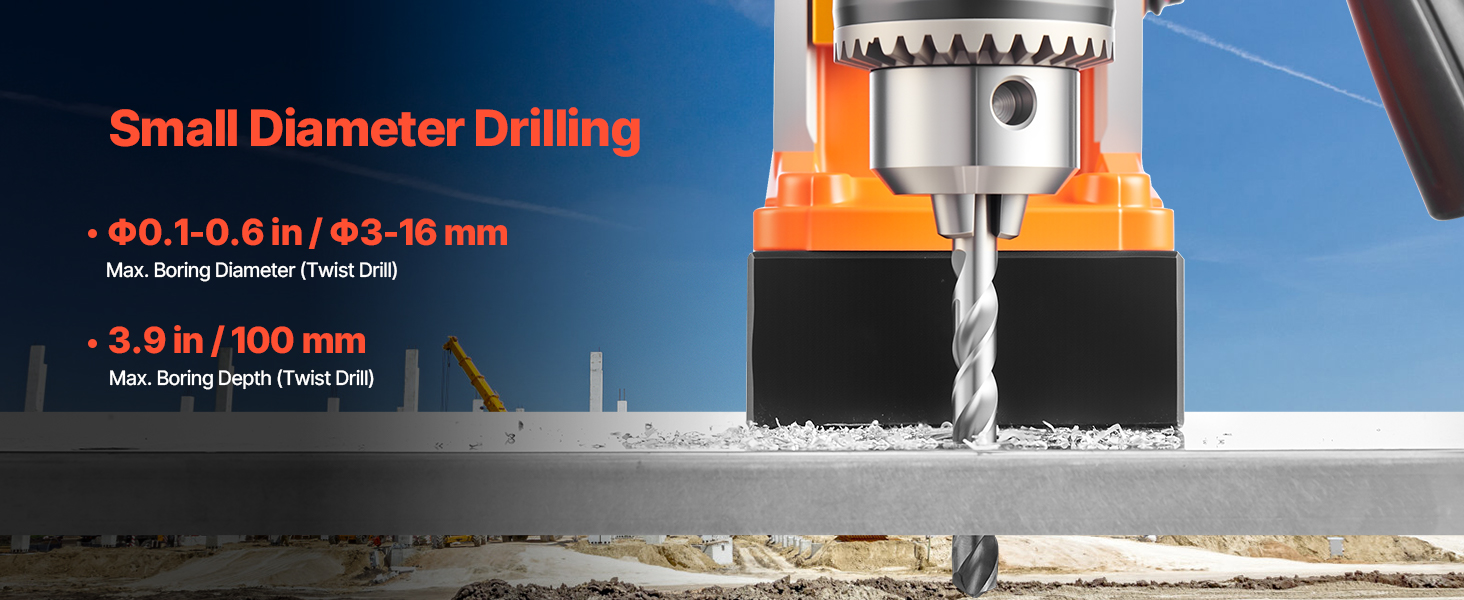

| Max. Boring Diameter (Twist Drill) | Φ0.1-0.6 in / Φ3-16 mm |
| Shank Type | Weldon Shank |
| Max. Boring Depth (Twist Drill) | 3.9 in / 100 mm |
| Maximum Load Power | 1450W |
| Maximum Magnetic Force | 2878 lbf / 12800 N |
| Tap Size Range | M3-M16 |
| Item Model Number | MDP-50 |
| Max. Coring Depth | 2 in / 50 mm |
| Max. Travel Distance | 8.7 in / 220 mm |
