Why Choose VEVOR?. VEVOR 300MM Linear Scale For Milling Lathe Machine Accuracy Grinding Linear. VEVOR 250MM Linear Scale For Milling Lathe Machine Accuracy Grinding Linear. Power of Motor: 550W DC Single Phase.
427.49$
VEVOR 7" x 14" Mini Metal Lathe w/Lamp 550W Precision Variable Speed 2250 RPM - YouTube
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Variable Speed & w/ a Movable Lamp & Emergency Stop

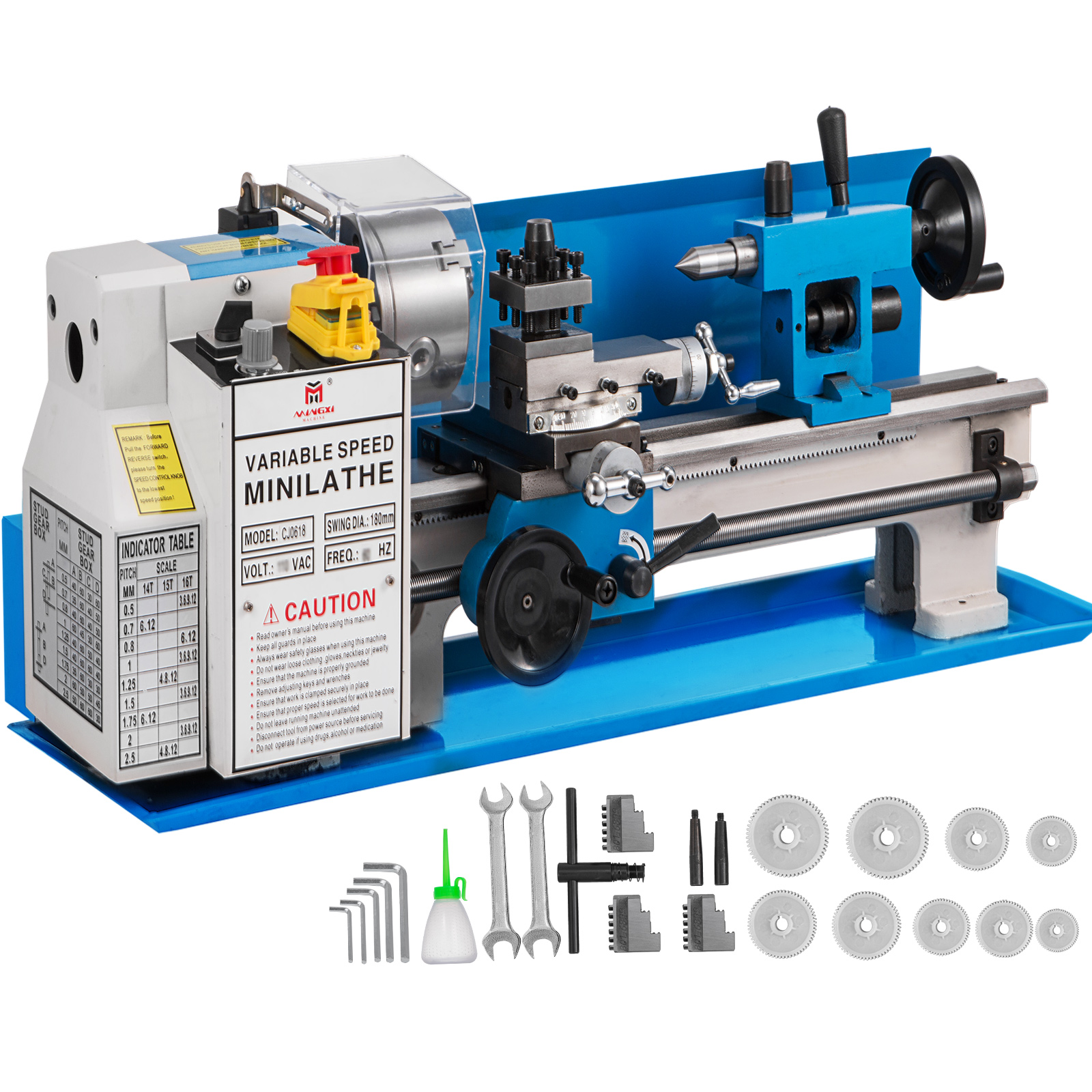

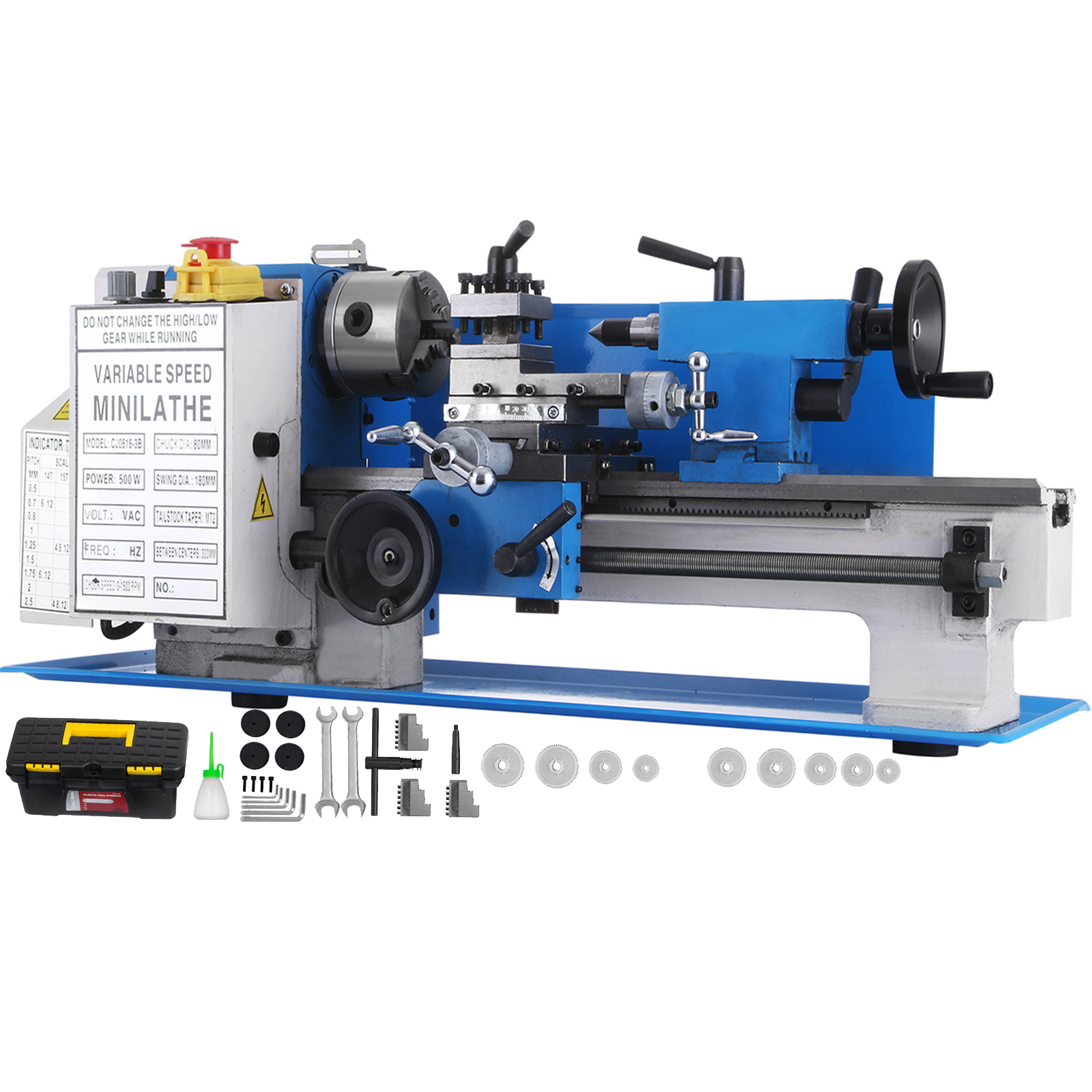

The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500 RPM spindle speed sublevel of two tranches spindle gear change speed control, continuously adjustable. A movable lamp is free for you.
- Sturdy Construction
- Infinitely Variable Speeds
- Accurate 3-jaw Chuck
- Professional Compound Rest
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Key Features
Heavy-Duty Machine
Made of superior iron, which can withstand long years. Feature a 7-inch swing over bed, 13.78 inch distance between centers. The wide through hole allows easy work with long and thin pieces including pins, bushings, axles, and shafts.
Stepless Speed Control
Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.

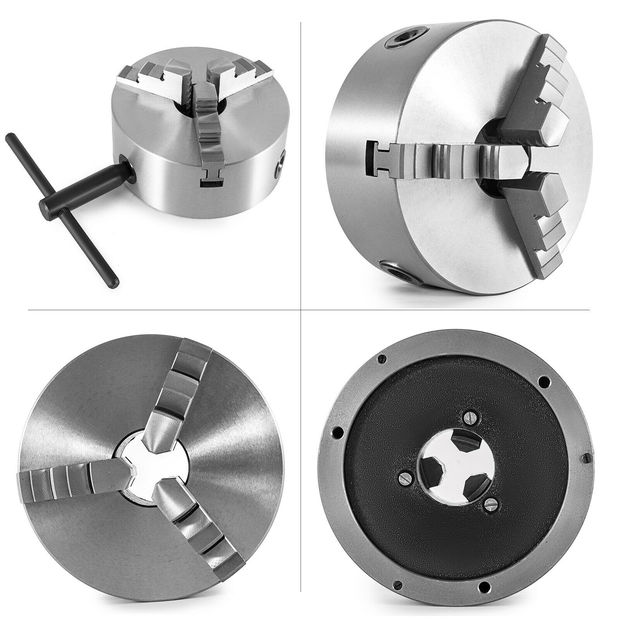

High Accuracy Chuck
The self-centering 3-jaw chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm.
Four-way Tool Post
T-slotted compound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Professional Cross Slide
Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm. A lamp is for accurate operation in dark circumstances.
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
- Power of Motor: 550W DC Single Phase
- Variable Speed: 50-2500PRM
- Swing Over Bed: 7.09" / 180 mm
- Chuck Diameter: 3.94" / 100 mm
- Centers Distance: 13.78" / 350 mm
- Spindle Bore: 0.82" / 21 mm
- Inch Thread: 12-52 T.P.I
- Metric Thread: 0.5-2.5 mm
- Item Weight: 88.18 lbs / 40 kg
-
Item Dimensions: 27.5 × 8.5 × 11.6 in / 69.9 × 21.7 × 29.7 cm
Package Content- 1 x Mini Metal Lathe
- 1 x Working Light
- 3 x Chuck Jaw
- 1 x Chuck Wrench
- 2 x Wrench
- 1 x Oil Can
- 5 x Hex Wrench
- 9 x Plastic Nylon Gear
- 2 x Handle
- 4 x Rubber Feet
- 4 x Screws
- 1 x Tool Box
Features & Details
- Sturdy Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.
- Infinitely Variable Speeds: Power metal lathes has large center distance 13.78" / 350 mm and swing over bed:7.09" / 180 mm, spindle bore: 0.82" / 21 mm. Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. Emergency stop button included.
- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm. A free lamp is included.
- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
- Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
People Who Bought This Item Also Bought
Please be aware that PO Box cannot receive items,please DO NOT fill in the PO Box address.
- DELIVERY DAYS: 3-7 BUSINESS DAYS
- 3 BUSINESS DAYS SHIPPING OUT
- SHIP FROM CA & TX & NJ & GA & NC &OR WAREHOUSE
California Warehouse: City of Industry, CA
Texas Warehouse: Houston, TX
New Jersey Warehouse: Perth Amboy, NJ
New York State Warehouse: Perth Amboy, NJ
Georgia Warehouse: Austell,GA
North Carolina Warehouse: Grove NC
Oregon Warehouse: AIRPORT WAY Portland,OR
- All of our items are backed with a 30-day return policy. We ensure all our items are new and in excellent condition prior to shipping. In case you receive the item that is not to the standards above, please contact us via e-Bay messages. All returns must be in new original condition as received and should be shipped with delivery confirmation
- Please note that all returns must be pre-approved by us. Unauthorized returns will not be accepted. If you need to return, please check twice to confirm the item not work and contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation.
- We ONLY accept returns with original package. Please make sure that item has NO man-made sabotage. Used items will not be accepted for return.
- Email Customer Support:
- 9:00am-2:00am PST Sunday-Friday
- All emails will be responded to within 12-24 hours
- This item comes with 12 months Warranty from the date of customers purchased it. Special circumstances will be listed clearly in the listing.
- If your item has been damaged in transit or become faulty in warranty period, please email us with pictures or video to show the problem.
- Please do check everything carefully after you received the parcel, any the damage except DOA (Dead-On-Arrival) would not be covered if it's your fault.
- Replacement products are provided with the same warranty as the returned products.
VEVOR 7" x 14" Mini Metal Lathe w/Lamp 550W Precision Variable Speed 2250 RPM - YouTube
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Variable Speed & w/ a Movable Lamp & Emergency Stop
The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500 RPM spindle speed sublevel of two tranches spindle gear change speed control, continuously adjustable. A movable lamp is free for you.
- Sturdy Construction
- Infinitely Variable Speeds
- Accurate 3-jaw Chuck
- Professional Compound Rest
Key Features
-
Heavy-Duty Machine
Made of superior iron, which can withstand long years. Feature a 7-inch swing over bed, 13.78 inch distance between centers. The wide through hole allows easy work with long and thin pieces including pins, bushings, axles, and shafts.
-
Stepless Speed Control
Variablespeed from 50-2500 RPM. Forward and reverse in all speeds. Operateeither manually or with the adjustable auto feed rate. The feed speedcan be adjusted according to the requirements of different workpieces.
-
High Accuracy Chuck
The self-centering 3-jaw chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm.
-
Four-way Tool Post
T-slottedcompound slide with four-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angleof the compound rest with the lever.
-
Professional Cross Slide
Designedwith abrasive resistance, moving blades freely with feed rod. 16 TPIreversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm. A lamp is for accurate operation in dark circumstances.
-
Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
-
- 1 x Mini Metal Lathe
- 1 x Working Light
- 3 x Chuck Jaw
- 1 x Chuck Wrench
- 2 x Wrench
- 1 x Oil Can
- 5 x Hex Wrench
- 9 x Plastic Nylon Gear
- 2 x Handle
- 4 x Rubber Feet
- 4 x Screws
- 1 x Tool Box
- Power of Motor: 550W DC Single Phase
- Variable Speed: 50-2500PRM
- Swing Over Bed: 7.09" / 180 mm
- Chuck Diameter: 3.94" / 100 mm
- Centers Distance: 13.78" / 350 mm
- Spindle Bore: 0.82" / 21 mm
- Inch Thread: 12-52 T.P.I
- Metric Thread: 0.5-2.5 mm
- Item Weight: 88.18 lbs / 40 kg
-
Item Dimensions: 27.5 × 8.5 × 11.6 in / 69.9 × 21.7 × 29.7 cm
 |
 |
 |
 |
 |
 |
|
| 7"x12" Mini Metal Lathe | 7"x14" Mini Metal Lathe | 8"x16" Metal Lathe | 3 Jaw Lathe Chuck | 8 x 16 Metal Lathe | 18 Pcs Lathe Gears | |
| Swing Over Bed | 7" / 180 mm | 7.09" / 180 mm | 8.3" / 210 mm | / | 8.27" / 210 mm | / |
| Centers Distance | 11.8" / 300 mm | 13.78" / 350 mm | 15.7" / 400 mm | / | 15.75" / 400 mm | / |
| Motor Power | 400W | 550W | 750W | / | 750W | / |
| Spindle Speed | 50 - 2250 RPM | 0 - 2250 RPM | 0 - 2250 RPM | / | 0 - 2250 RPM | / |
| Chuck Size | / | 3.94" / 100 mm | / | 3.15" / 80 mm | 4.92" / 125 mm | / |
| Spindle Taper | MT3 | MT3 | MT5 | / | MT5 | / |
| Tailstock Taper | MT2 | MT2 | MT2 | / | MT2 | / |
| Inch Threads | 8-44 T.P.I | 12-52 T.P.I | 8-44 T.P.I | / | 8 - 44 T.P.I | / |
| Spindle Bore | 0.83" / 21 mm | 0.83" / 21 mm | 0.83" / 21 mm | / | 1.5" / 38 mm | / |
Features & Details
- Sturdy Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.
- Infinitely Variable Speeds: Power metal lathes has large center distance 13.78" / 350 mm and swing over bed:7.09" / 180 mm, spindle bore: 0.82" / 21 mm. Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. Emergency stop button included.
- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm. A free lamp is included.
- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
- Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
SHIPPING
- DELIVERY DAYS: 3-7 BUSINESS DAYS
- 3 BUSINESS DAYS SHIPPING OUT
- SHIP FROM CA & TX & NJ & GA & NC &OR WAREHOUSE
California Warehouse: City of Industry, CA
Texas Warehouse: Houston, TX
New Jersey Warehouse: Perth Amboy, NJ
New York State Warehouse: Perth Amboy, NJ
Georgia Warehouse: Austell,GA
North Carolina Warehouse: Grove NC
Oregon Warehouse: AIRPORT WAY Portland,OR
PAYMENT
- We accept PayPal payment,PayPal Credit,Credit card or debit card and so on.
- Payment should be completed within 4 (Four) days of auction closing. Or unpaid dispute will be filed for closing auction.
- We will leave a positive feedback immediately after payment is received. We appreciate a positive feedback as much as you do. If for some reason there is any issue with the purchase, please contact us prior to leaving feedback, we will be glad to work together and provide a satisfying solution.
RETURNS
- All of our items are backed with a 30-day return policy. We ensure all our items are new and in excellent condition prior to shipping. In case you receive the item that is not to the standards above, please contact us via e-Bay messages. All returns must be in new original condition as received and should be shipped with delivery confirmation
- Please note that all returns must be pre-approved by us. Unauthorized returns will not be accepted. If you need to return, please check twice to confirm the item not work and contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation.
- We ONLY accept returns with original package. Please make sure that item has NO man-made sabotage. Used items will not be accepted for return.
CONTACT
- Email Customer Support:
- 9:00am-2:00am PST Sunday-Friday
- All emails will be responded to within 12-24 hours
WARRANTY
- This item comes with 12 months Warranty from the date of customers purchased it. Special circumstances will be listed clearly in the listing.
- If your item has been damaged in transit or become faulty in warranty period, please email us with pictures or video to show the problem.
- Please do check everything carefully after you received the parcel, any the damage except DOA (Dead-On-Arrival) would not be covered if it's your fault.
- Replacement products are provided with the same warranty as the returned products.
| Brand | VEVOR |
| MPN | NMFUY4 |
| Model | 7x14 in Metal Lathe |
| Power Source | Electric |
| Swing Over Bed | 7.09" / 180 mm |
| Control | Manual |
| Chuck Size | 4 in / 101.6 mm |
| Machine Type | Metal Lathe |
| Treated Material | Metal |
| Power of Motor | 550W DC Single Phase |
| Variable Speed | 50-2500 RPM |
| Spindle Bore | 0.83" / 21 mm |
| Inch Thread | 12-52 T.P.I |
| Metric Thread | 0.5-2.5 mm |
| Swing Over Cross Slide | 3.94" / 100 mm |
| Centers Distance | 13.78" / 350 mm |
| Spindle Taper | MT3 |
| Tailstock Taper | MT2 |
| Cross Slide Travel | 2.53" / 65 mm |
| Top Slide Travel | 1.36" / 35 mm |
| Spindle Accuracy | 0.01 mm |
| Gear Material | Plastic Nylon |
| Item Weight | 88.18 lbs / 40 kg |
| Item Dimensions | 27.5 × 8.5 × 11.6 in / 69.9 × 21.7 × 29.7 cm |
| UPC | 197988055907 |
