TD Gen2 LRF Handheld Thermal Imaging Monocular. The TD Gen2 Series laser rangefinder version is the industry's first entry-level full-featured handheld thermal imaging monoculars. Guide Sensmart is a subsidiary of Guide Infrared.
1090.99$
Product Stock Quantity
-
+
Add To Cart
Product Description
TD Gen2 LRF Handheld Thermal Imaging Monocular

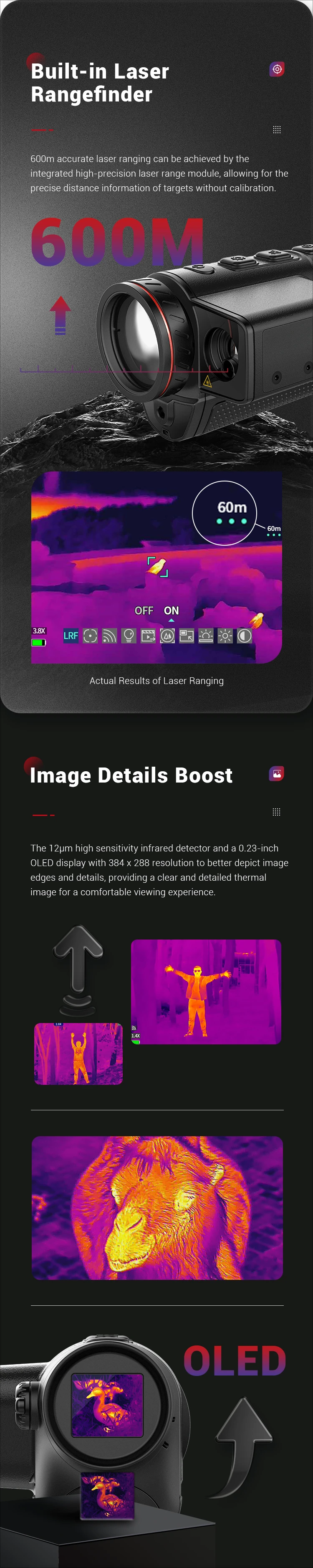

The TD Gen2 Series laser rangefinder version is the industry's first entry-level full-featured handheld thermal imaging monoculars. While inheriting the characteristics of the previous generation, such as being lightweight, portable, easy to operate, and durable, TD631 LRF integrates a high-precision laser rangefinder module to accurately detect targets within 600 meters. It adopts an OLED display, providing clear imaging and a comfortable viewing experience, making it the ideal equipment for outdoor night vision.

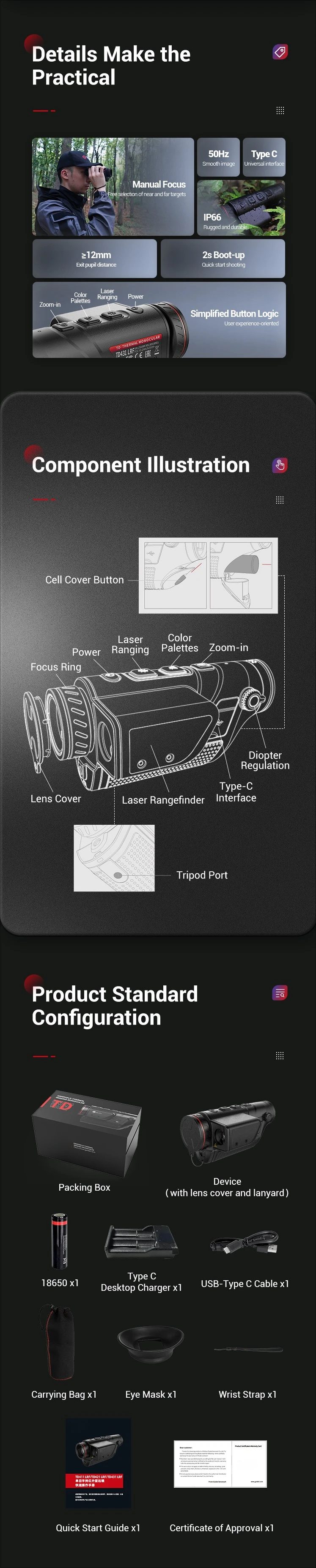

Product Features
Specification
|
Product model
|
TD411 LRF
|
TD421 LRF
|
TD431 LRF
|
TD631 LRF
|
||||
|
Sensor
|
|
|
|
|
||||
|
Type
|
Uncooled VOx Infrared Detector, 8 to 14 μm
|
|
|
|
||||
|
Resolution
|
384×288, 12 μm
|
|
|
640×480, 12 μm
|
||||
|
NETD
|
≤35mK
|
|
|
|
||||
|
Frame rate
|
50Hz
|
|
|
|
||||
|
Lens
|
|
|
|
|
||||
|
Focal length
|
19 mm, F1.0
|
25 mm, F1.1
|
35 mm, F1.0
|
|
||||
|
Field of view
|
13.6°×10.3°
|
10.4°×7.9°
|
7.5°×5.6°
|
12.5°×9.4°
|
||||
|
Optical zoom
|
1.4x
|
1.9x
|
2.6x
|
1.7x
|
||||
|
Digital zoom
|
1x, 2x and 4x
|
|
|
1x, 2x, 4x and 8x
|
||||
|
Focus
|
Manual
|
|
|
|
||||
|
Display
|
|
|
|
|
||||
|
Display type
|
0.23’’ AMOLED
|
|
|
|
||||
|
Resolution
|
640×400
|
|
|
|
||||
|
Eyepiece
|
Exit pupil distance≥12 mm; Diopter: -4 to +2; Zoom: 18x
|
|
|
|
||||
|
Video output
|
Analog video
|
|
|
|
||||
|
Range Performance
|
|
|
|
|
||||
|
Detection range
|
800 m
|
1000 m
|
1400 m
|
|
||||
|
Hardware
|
|
|
|
|
||||
|
Laser rangefinder
|
Max. measuring range: 600m
|
|
|
|
||||
|
Functions
|
|
|
|
|
||||
|
Scene modes
|
Enhanced, Highlight and Natural
|
|
|
|
||||
|
Color palettes
|
Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot
|
|
|
|
||||
|
WIFI
|
2.4 G
|
|
|
|
||||
|
Supported Application
|
TargetIR
|
|
|
|
||||
|
Firmware OTA
|
Upgrade device firmware via app connection
|
|
|
|
||||
|
Others
|
PIP, Hot spot tracking
|
|
|
|
||||
|
Power
|
|
|
|
|
||||
|
Battery type
|
Single, replaceable 18650 battery
|
|
|
|
||||
|
Operating time
|
≥ 10 hours
|
|
|
≥ 8 hours
|
||||
|
Interface
|
|
|
|
|
||||
|
USB
|
USB Type-C
|
|
|
|
||||
|
Mechanical interface
|
UNC ¼"-20 (Tripod mounting), Mechanical expansion interface
|
|
|
|
||||
|
Environmental
|
|
|
|
|
||||
|
Storage temperature
|
-30 °C to 60 °C
|
|
|
|
||||
|
Humidity
|
10 % to 95 % non-condensing
|
|
|
|
||||
|
Shock
|
30 G at 11 ms half sine pulse (as per IEC60068-2-27)
|
|
|
|
||||
|
Drop
|
1 m
|
|
|
|
||||
|
Encapsulation
|
IP66
|
|
|
|
||||
|
Certification
|
IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2
|
|
|
|
||||
|
Physical
|
|
|
|
|
||||
|
Weight
|
≤383 g
|
≤360 g
|
≤393 g
|
≤399 g
|
||||
|
Size
|
150×75×74 mm
|
|
150×77×74 mm
|
153×77×74 mm
|
||||
|
Standard
|
A device, lens cover and lanyard, Wrist strap, Carry bag, Eye mask, Battery charger, single 18650 battery, USB Type-C cable, Quick use guide, Warranty card
|
|
|
|
||||
Company Profile
FAQ
1. who are we?
We are based in China, start from 2016,sell to Domestic Market(39.00%),Western Europe(10.00%),North America(8.00%),Northern Europe(5.00%),South Asia(4.00%),Eastern Asia(4.00%),South America(4.00%),Oceania(4.00%),Southern Europe(4.00%),Central America(4.00%),Eastern Europe(4.00%),Mid East(4.00%),Southeast Asia(4.00%),Africa(2.00%). There are total about 1000+ people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Thermal Camera, Thermal Scope
4. why should you buy from us not from other suppliers?
Guide Sensmart is a subsidiary of Guide Infrared. Backed by the 20 years' experience in the infrared industry of Guide Infrared, and low-cost and reliable mass production capacity, Guide Sensmart developed a wide range of infrared thermal imaging cameras.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,Japanese,Portuguese,German,Korean,Italian
We are based in China, start from 2016,sell to Domestic Market(39.00%),Western Europe(10.00%),North America(8.00%),Northern Europe(5.00%),South Asia(4.00%),Eastern Asia(4.00%),South America(4.00%),Oceania(4.00%),Southern Europe(4.00%),Central America(4.00%),Eastern Europe(4.00%),Mid East(4.00%),Southeast Asia(4.00%),Africa(2.00%). There are total about 1000+ people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Thermal Camera, Thermal Scope
4. why should you buy from us not from other suppliers?
Guide Sensmart is a subsidiary of Guide Infrared. Backed by the 20 years' experience in the infrared industry of Guide Infrared, and low-cost and reliable mass production capacity, Guide Sensmart developed a wide range of infrared thermal imaging cameras.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,Japanese,Portuguese,German,Korean,Italian
| Encapsulation | IP66 |
| Operating time | ≥ 10 hours |
| Place of Origin | "null" |
| NETD | ≤35mK |
| Detetor Resolution | 384*288 |
| Field of view | 7.5° * 5.6° |
| Model Number | TD431 LRF |
| Laser rangefinder | Max. measuring range: 600m |
| Type | Night Vision Optic |
| Maximum Output Power | <1MW |
| Lens | 35 mm; F1.0 |
| Digital zoom | 1x,2x,4x |
| WIFI | Available |
| Display | 0.23'' AMOLED,640*400 |
